| PCD Drawing Dies: | Polycrystalline Diamond Dies | Material: | D6 - D36 |
|---|---|---|---|
| Hole Size: | 0.10mm-12.7mm | Wire Gague: | AWG, SWG |
| Casing: | Stainless Steel | Transport: | By Air |
| Highlight: | 0.100mm Wire Drawing Dies,0.400mm Wire Drawing Dies,SWG Polycrystalline Diamond Dies |
||
Polycrystalline Diamond Dies, Wire Drawing Dies
1. Description:

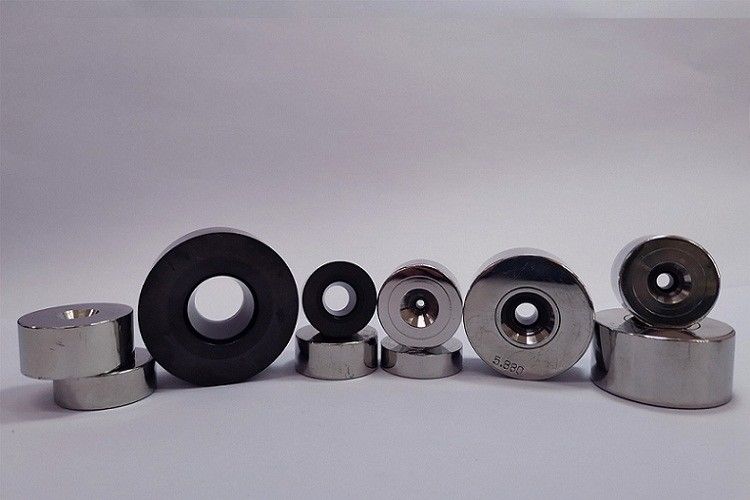

Polycrystalline diamond is manufactured by forming a mass of diamond crystals and then applying a combination of heat and pressure. Through this process, the mass becomes a single unit with the diamond particles inter-grown to each other. The final product is extremely wear resistant, maintains tight hole tolerances, and provides good surface finish. It’s also the perfect material for stranding, bunching, tube drawing and shaped dies.
2. Specifications:
| inches | mm | ADDMA | Maximum Diameter |
| 0.0039-0.0157 | 0.100-0.400 | D6 | 0.4 |
| 0.0079-0.0315 | 0.200-0.800 | D12 | 0.8 |
| 0.0079-0.0394 | 0.200-1.000 | D12 | 1.0 |
| 0.0197-0.0591 | 0.500-1.500 | D15 | 1.5 |
| 0.0197-0.0591 | 0.500-1.500 | D15 | 1.5 |
| 0.0315-0.0787 | 0.800-2.000 | D18 | 2.0 |
| 0.0315-0.0787 | 0.800-2.000 | D18 | 2.0 |
| 0.0472-0.1181 | 1.200-3.100 | D21 | 3.1 |
| 0.0472-0.1181 | 1.200-3.100 | D21 | 3.1 |
| 0.0591-0.1732 | 1.500-4.400 | D24 | 4.4 |
| 0.0591-0.1732 | 2.000-4.400 | D24 | 4.4 |
| 0.1299-0.2126 | 3.300-5.400 | D27 | 5.4 |
| 0.1299-0.2183 | 3.300-5.800 | D27 | 5.8 |
| 0.2008-0.2992 | 5.100-7.600 | D30 | 7.6 |
| 0.3150-0.4331 | 8.000-11.000 | D33 | 11.0 |
| 0.3150-0.4409 | 8.000-11.200 | D30 | 11.2 |
| 0.3150-0.4724 | 8.000-12.000 | D33 | 12.0 |
| 0.3150-0.4921 | 8.000-12.500 | D33 | 12.5 |
| 0.3150-0.5000 | 8.000-12.700 | D36 | 12.7 |
3. Application:
Suitable for drawing ferrous or nonferrous wire, including aluminum, copper and stainless steel.
4. Advantage:
The "industry workhorse" is the signature of the polycrystalline diamond die, where standing up to demanding wear is a necessity. This material has highly predictable die wear, thermal stability with high resistance to fracturing. All these characteristics offer cost efficiency with less downtime.
