Product Description

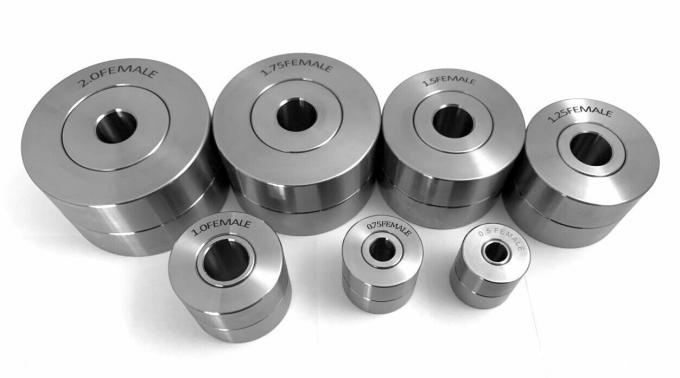

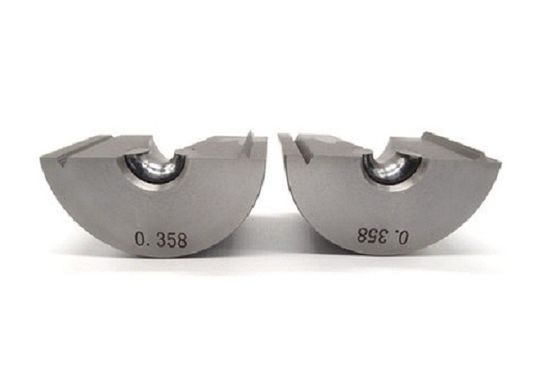

Split Dies, Wire Drawing Dies

1. Description:

Made in a wide range of configurations and designs, split dies can dramatically cut your setup time by eliminating the need to restring a stranding or cabling machine when changing sizes. Split dies allow for quick changeovers without cutting the wire, providing ease of use and higher throughput.

2. Application:

Split Dies are commonly used as a replacement for regular bunching, stranding and compacting dies to dramatically cut the setup time of stranding machines. The use of split dies minimizes the necessity to restring a machine.

3. Advantage:

Our Split Dies have well blended profiles and highly polished surfaces enabling superior performance and wire quality.

inches	mm	ADDMA	Maximum Diameter
0.0039-0.0157	0.100-0.400	D6	0.4
0.0079-0.0315	0.200-0.800	D12	0.8
0.0079-0.0394	0.200-1.000	D12	1.0
0.0197-0.0591	0.500-1.500	D15	1.5
0.0197-0.0591	0.500-1.500	D15	1.5
0.0315-0.0787	0.800-2.000	D18	2.0
0.0315-0.0787	0.800-2.000	D18	2.0
0.0472-0.1181	1.200-3.100	D21	3.1
0.0472-0.1181	1.200-3.100	D21	3.1
0.0591-0.1732	1.500-4.400	D24	4.4
0.0591-0.1732	2.000-4.400	D24	4.4
0.1299-0.2126	3.300-5.400	D27	5.4
0.1299-0.2183	3.300-5.800	D27	5.8
0.2008-0.2992	5.100-7.600	D30	7.6
0.3150-0.4331	8.000-11.000	D33	11.0
0.3150-0.4409	8.000-11.200	D30	11.2
0.3150-0.4724	8.000-12.000	D33	12.0
0.3150-0.4921	8.000-12.500	D33	12.5
0.3150-0.5000	8.000-12.700	D36	12.7
