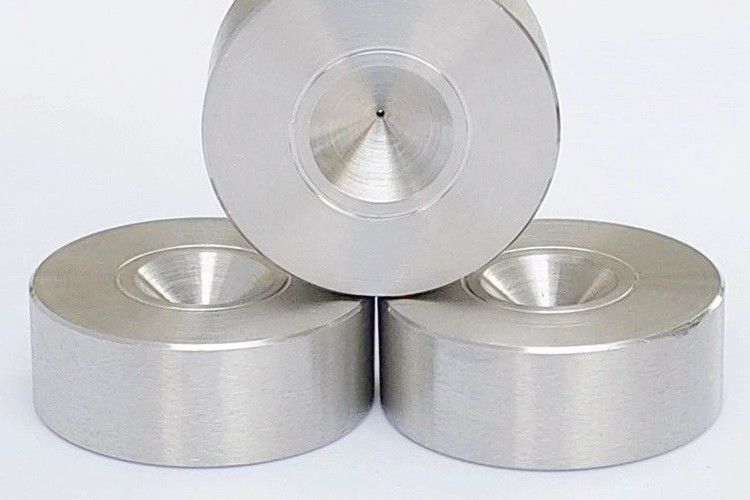

0.600mm To 1.199mm PCD Drawing Die Diamond Drawing Die

0.600mm To 1.199mm PCD Drawing Die Diamond Drawing Die
0.600mm To 1.199mm PCD Drawing Die Diamond Drawing Die

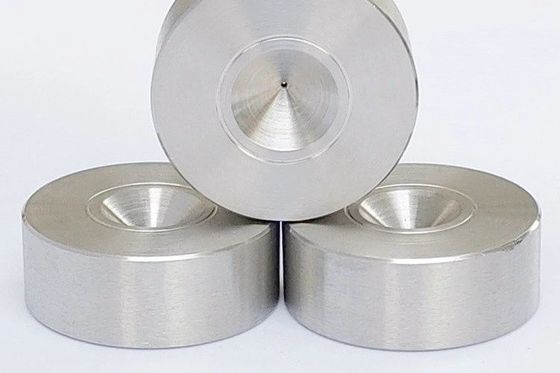

Large Image :  0.600mm To 1.199mm PCD Drawing Die Diamond Drawing Die

Product Details:
Place of Origin: China
Model Number: 0.012~1.20 mm
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Carton, Box
Delivery Time: 5-8 work day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200pcs each day
Detailed Product Description
Model No.: 0.012~1.20 Mm Material: ND, MD
Surface Treatment: Polishing Customized: Customized
Application: Drawing Wires Transport: By Air
Highlight:

0.600mm PCD Drawing Die

,

1.199mm PCD Drawing Die

,

MD Diamond Drawing Die

ND Dies, MD Dies, Diamond Drawing Dies



1. Description:



We offer a large selection of natural diamond for drawing rod and wire. Through the strict accuracy inspection, the natural diamond is processed with sintering after delicate polishing to make parallel between 111-direction and sides ground surface. Mono Diamond is produced with high-temperature and pressure, is quite suitable for maintaining the abrasive resistance.



2. Specification:

Size Range Natural Diamond Dies
(ND Dies)
Mono Diamond Dies
(MD Dies)
Φ mm Φ inch
0.012 - 0.059 0.0005 - 0.0023
0.060 - 0.099 0.0024 - 0.0039
0.100 - 0.599 0.0039 - 0.0236
0.600 - 1.199 0.0236 - 0.0472
... ... ... ...



3. Application:

Non ferrous and ferrous metal, such as cooper, aluminum, gold, silver, molybdenum, nickel,wolfram, alloy wire, stainless steel wire and so on.



4. Advantages:

  • Super fine wire polishing surface.
  • Precisiong tolerance standards.

0.600mm To 1.199mm PCD Drawing Die Diamond Drawing Die 0
