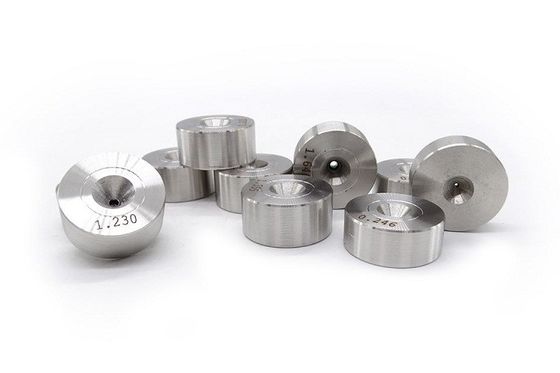

1.200 To 3.100mm Compacting PCD Drawing Dies For Ferrous And Non Ferrous Wires

1.200 To 3.100mm Compacting PCD Drawing Dies For Ferrous And Non Ferrous Wires
1.200 To 3.100mm Compacting PCD Drawing Dies For Ferrous And Non Ferrous Wires

Large Image :  1.200 To 3.100mm Compacting PCD Drawing Dies For Ferrous And Non Ferrous Wires

Product Details:
Place of Origin: China
Model Number: D6 - D36
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton, Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 pieces per day
Detailed Product Description
PCD Drawing Dies: Ferrous And Non Ferrous Wires Material: PCD Core
Surface Treatment: Polishing Application: Wire Drawing Industry
Mold Life: 1-2 Years Transport: By Air
Highlight:

1.200mm PCD Drawing Dies

,

3.100mm PCD Drawing Dies

,

compacting dies For Ferrous

PCD Wire Drawing Dies for Ferrous and Non Ferrous Wires



1. Description:



PCD Wire Drawing Die is a normal wire tool made by PCD core. When pass through a group of PCD dies, the wire gradually deforms then becomes thiner and thiner, finally comes to target size. PCD Wire Drawing Die has the longest die life of all materials,which can provide the highest production efficiency and reduce downtime.



2. Specifications:



inches mm ADDMA Maximum Diameter
0.0039-0.0157 0.100-0.400 D6 0.4
0.0079-0.0315 0.200-0.800 D12 0.8
0.0079-0.0394 0.200-1.000 D12 1.0
0.0197-0.0591 0.500-1.500 D15 1.5
0.0197-0.0591 0.500-1.500 D15 1.5
0.0315-0.0787 0.800-2.000 D18 2.0
0.0315-0.0787 0.800-2.000 D18 2.0
0.0472-0.1181 1.200-3.100 D21 3.1
0.0472-0.1181 1.200-3.100 D21 3.1
0.0591-0.1732 1.500-4.400 D24 4.4
0.0591-0.1732 2.000-4.400 D24 4.4
0.1299-0.2126 3.300-5.400 D27 5.4
0.1299-0.2183 3.300-5.800 D27 5.8
0.2008-0.2992 5.100-7.600 D30 7.6
0.3150-0.4331 8.000-11.000 D33 11.0
0.3150-0.4409 8.000-11.200 D30 11.2
0.3150-0.4724 8.000-12.000 D33 12.0
0.3150-0.4921 8.000-12.500 D33 12.5
0.3150-0.5000 8.000-12.700 D36 12.7

Note: The above hole sizes are recommended for soft wire.In case of hard wire drawing,the maximum hole size should not exceed 65% of them.



3. Application:



Copper, aluminum, gold, silver, nickel, chrome, molybdenum, wolfram, steel cord, electric wire & cable, gas shield welding wire, flux-cored wire, automobile wire, pipe line, construction wire, rigging wire, optical fiber and so on.



4. Advantage:



The wire drawing die is a very important and consumable product used by various metal wire manufacturers to draw wires. Wire drawing dies have a wide range of uses, such as: high-precision wires used in electronic devices, radars, televisions, instruments and aerospace, as well as commonly used tungsten wires, molybdenum wires, stainless steel wires, wire and cable wires and various alloy wires.
