D36 PCD Drawing Dies 8mm To 12.7mm Diamond Dies For Wire Drawing

I'm Online Chat Now

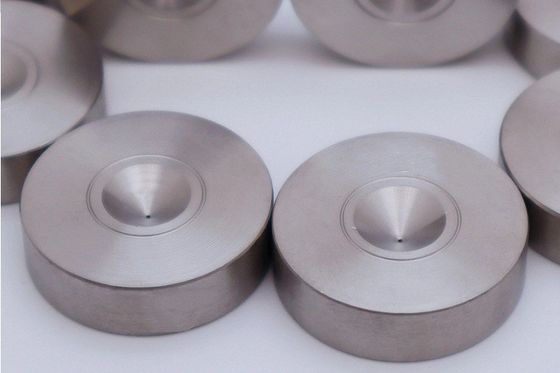

D36 PCD Drawing Dies 8mm To 12.7mm Diamond Dies For Wire Drawing

D36 PCD Drawing Dies 8mm To 12.7mm Diamond Dies For Wire Drawing
D36 PCD Drawing Dies 8mm To 12.7mm Diamond Dies For Wire Drawing

Large Image :  D36 PCD Drawing Dies 8mm To 12.7mm Diamond Dies For Wire Drawing

Product Details:
Place of Origin: China
Model Number: D6 - D36
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton, Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 pieces per day
Detailed Product Description
PCD Drawing Dies: Energy Industry Material: PCD Core
Size: Customized Size Surface Treatment: Polishing
Mold Life: 1-2 Years Transport: By Air
Highlight:

D36 PCD Drawing Dies

,

D36 PCD Drawing Dies 12.7mm

,

8MM diamond dies for wire drawing

PCD Drawing Dies, Polycrystalline Diamond Dies, Wire Drawing Dies for Energy Industry



1. Description:



Energy saving and consumption reduction in China which it's going to the forefront of the world's clean energy utilization, become the largest manufacturer and applications of solar photovoltaic power generation. Our Drawing dies in the field of photovoltaic cell wafer slicing plays a role that can not be ignored.



2. Specifications:



inches mm ADDMA Maximum Diameter
0.0039-0.0157 0.100-0.400 D6 0.4
0.0079-0.0315 0.200-0.800 D12 0.8
0.0079-0.0394 0.200-1.000 D12 1.0
0.0197-0.0591 0.500-1.500 D15 1.5
0.0197-0.0591 0.500-1.500 D15 1.5
0.0315-0.0787 0.800-2.000 D18 2.0
0.0315-0.0787 0.800-2.000 D18 2.0
0.0472-0.1181 1.200-3.100 D21 3.1
0.0472-0.1181 1.200-3.100 D21 3.1
0.0591-0.1732 1.500-4.400 D24 4.4
0.0591-0.1732 2.000-4.400 D24 4.4
0.1299-0.2126 3.300-5.400 D27 5.4
0.1299-0.2183 3.300-5.800 D27 5.8
0.2008-0.2992 5.100-7.600 D30 7.6
0.3150-0.4331 8.000-11.000 D33 11.0
0.3150-0.4409 8.000-11.200 D30 11.2
0.3150-0.4724 8.000-12.000 D33 12.0
0.3150-0.4921 8.000-12.500 D33 12.5
0.3150-0.5000 8.000-12.700 D36 12.7

Note: The above hole sizes are recommended for soft wire.In case of hard wire drawing,the maximum hole size should not exceed 65% of them.



3. Application:



It is used for Energy Industry.



4. Advantage:



Longest die life of any die material, Highest production efficiency with less downtime and predictable surface finish of wire.

D36 PCD Drawing Dies 8mm To 12.7mm Diamond Dies For Wire Drawing 0
