Product Details:
Payment & Shipping Terms:
|
| PCD Drawing Dies: | Enamelling Dies | Material: | PCD Insert, Tungsten Carbide Insert |
|---|---|---|---|
| Size: | Customized Size | Shape: | Customized Shapes |
| Type: | Mold Tool | Transport: | By Air |
| Highlight: | D12 Enamelling PCD Drawing Dies,0.2MM PCD Drawing Dies,0.8MM wire drawing machine die |
||

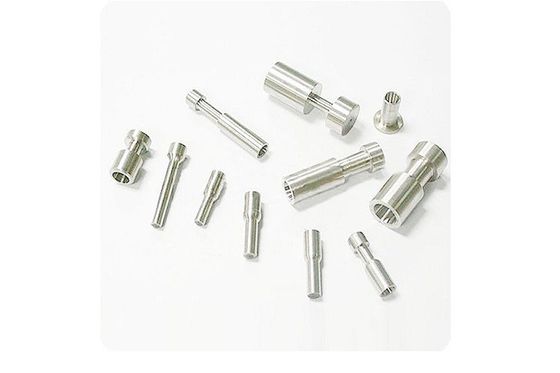

Enamelling Dies, PCD Drawing Dies
1. Description:
Enamelling die is a special process tools for wire coating, which is used to control the amount of coating and finally ensure that the finished enameled wire reaches the specified coating thickness.
| inches | mm | ADDMA | Maximum Diameter |
| 0.0039-0.0157 | 0.100-0.400 | D6 | 0.4 |
| 0.0079-0.0315 | 0.200-0.800 | D12 | 0.8 |
| 0.0079-0.0394 | 0.200-1.000 | D12 | 1.0 |
| 0.0197-0.0591 | 0.500-1.500 | D15 | 1.5 |
| 0.0197-0.0591 | 0.500-1.500 | D15 | 1.5 |
| 0.0315-0.0787 | 0.800-2.000 | D18 | 2.0 |
| 0.0315-0.0787 | 0.800-2.000 | D18 | 2.0 |
| 0.0472-0.1181 | 1.200-3.100 | D21 | 3.1 |
| 0.0472-0.1181 | 1.200-3.100 | D21 | 3.1 |
| 0.0591-0.1732 | 1.500-4.400 | D24 | 4.4 |
| 0.0591-0.1732 | 2.000-4.400 | D24 | 4.4 |
| 0.1299-0.2126 | 3.300-5.400 | D27 | 5.4 |
| 0.1299-0.2183 | 3.300-5.800 | D27 | 5.8 |
| 0.2008-0.2992 | 5.100-7.600 | D30 | 7.6 |
| 0.3150-0.4331 | 8.000-11.000 | D33 | 11.0 |
| 0.3150-0.4409 | 8.000-11.200 | D30 | 11.2 |
| 0.3150-0.4724 | 8.000-12.000 | D33 | 12.0 |
| 0.3150-0.4921 | 8.000-12.500 | D33 | 12.5 |
| 0.3150-0.5000 | 8.000-12.700 | D36 | 12.7 |
2. Specifications:
3. Application:
Used for wire coating.
4. Advantage:
