Product Details:
Payment & Shipping Terms:
|
| PCD Drawing Dies: | Construction Industry | Material: | PCD Core |
|---|---|---|---|
| Size: | Customized Size | Surface Treatment: | Polishing |
| Mold Life: | 1-2 Years | Transport: | By Air |
| Highlight: | D15 Polycrystalline Diamond Dies,0.5mm olycrystalline Diamond Dies,Construction Industry pcd wire die |
||

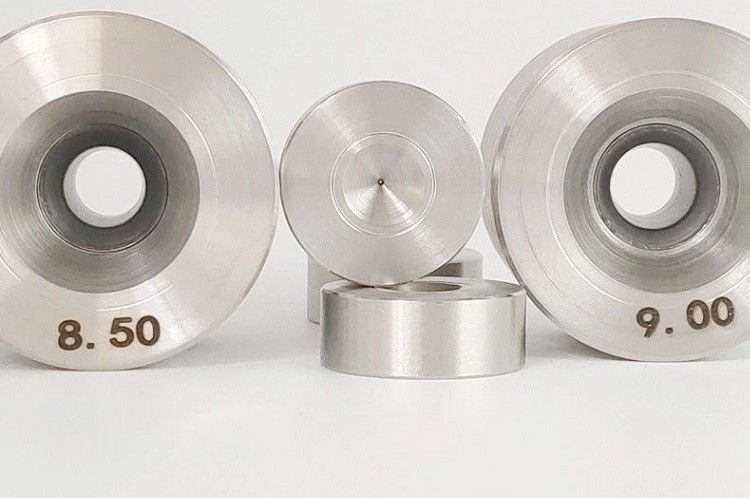

PCD Drawing Dies, Polycrystalline Diamond Dies, Wire Drawing Dies for Construction Industry
1. Description:
In recent years, the rapid development of buildings and facilities in railways, bridges, roads, pipelines, residences and public facilities. We have played an important role in providing wire drawing dies to reduce production costs for the production of wire and cables in the construction industry.
2. Specifications:
| inches | mm | ADDMA | Maximum Diameter |
| 0.0039-0.0157 | 0.100-0.400 | D6 | 0.4 |
| 0.0079-0.0315 | 0.200-0.800 | D12 | 0.8 |
| 0.0079-0.0394 | 0.200-1.000 | D12 | 1.0 |
| 0.0197-0.0591 | 0.500-1.500 | D15 | 1.5 |
| 0.0197-0.0591 | 0.500-1.500 | D15 | 1.5 |
| 0.0315-0.0787 | 0.800-2.000 | D18 | 2.0 |
| 0.0315-0.0787 | 0.800-2.000 | D18 | 2.0 |
| 0.0472-0.1181 | 1.200-3.100 | D21 | 3.1 |
| 0.0472-0.1181 | 1.200-3.100 | D21 | 3.1 |
| 0.0591-0.1732 | 1.500-4.400 | D24 | 4.4 |
| 0.0591-0.1732 | 2.000-4.400 | D24 | 4.4 |
| 0.1299-0.2126 | 3.300-5.400 | D27 | 5.4 |
| 0.1299-0.2183 | 3.300-5.800 | D27 | 5.8 |
| 0.2008-0.2992 | 5.100-7.600 | D30 | 7.6 |
| 0.3150-0.4331 | 8.000-11.000 | D33 | 11.0 |
| 0.3150-0.4409 | 8.000-11.200 | D30 | 11.2 |
| 0.3150-0.4724 | 8.000-12.000 | D33 | 12.0 |
| 0.3150-0.4921 | 8.000-12.500 | D33 | 12.5 |
| 0.3150-0.5000 | 8.000-12.700 | D36 | 12.7 |
Note: The above hole sizes are recommended for soft wire.In case of hard wire drawing,the maximum hole size should not exceed 65% of them.
3. Application:
It is used for Construction Industry.
4. Advantage:
Longest die life of any die material, Highest production efficiency with less downtime and predictable surface finish of wire.
