Product Details:
Payment & Shipping Terms:
|
| PCD Drawing Dies: | Medical Industry | Material: | PCD Core |
|---|---|---|---|
| Size: | Customized Size | Surface Treatment: | Polishing |
| Mold Life: | 1-2 Years | Transport: | By Air |
| Highlight: | Medical Industry wire drawing dies,0.8mm Polycrystalline Diamond wire drawing dies,2mm diamond dies for wire drawing |
||

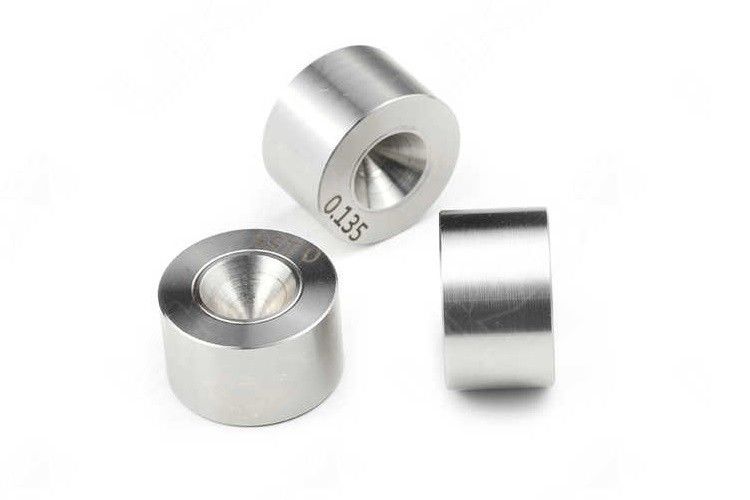

PCD Drawing Dies, Polycrystalline Diamond Dies, Wire Drawing Dies for Medical Industry
1. Description:
Medical devices, Endovascular stent, Bone needles, Orthopedic archwire, and other wire and tubing for medical products, from stainless steel, titanium alloy to nickel titanium alloy, Our dies and tools to assist in the production of products that meet the requirements of medical equipment.
2. Specifications:
| inches | mm | ADDMA | Maximum Diameter |
| 0.0039-0.0157 | 0.100-0.400 | D6 | 0.4 |
| 0.0079-0.0315 | 0.200-0.800 | D12 | 0.8 |
| 0.0079-0.0394 | 0.200-1.000 | D12 | 1.0 |
| 0.0197-0.0591 | 0.500-1.500 | D15 | 1.5 |
| 0.0197-0.0591 | 0.500-1.500 | D15 | 1.5 |
| 0.0315-0.0787 | 0.800-2.000 | D18 | 2.0 |
| 0.0315-0.0787 | 0.800-2.000 | D18 | 2.0 |
| 0.0472-0.1181 | 1.200-3.100 | D21 | 3.1 |
| 0.0472-0.1181 | 1.200-3.100 | D21 | 3.1 |
| 0.0591-0.1732 | 1.500-4.400 | D24 | 4.4 |
| 0.0591-0.1732 | 2.000-4.400 | D24 | 4.4 |
| 0.1299-0.2126 | 3.300-5.400 | D27 | 5.4 |
| 0.1299-0.2183 | 3.300-5.800 | D27 | 5.8 |
| 0.2008-0.2992 | 5.100-7.600 | D30 | 7.6 |
| 0.3150-0.4331 | 8.000-11.000 | D33 | 11.0 |
| 0.3150-0.4409 | 8.000-11.200 | D30 | 11.2 |
| 0.3150-0.4724 | 8.000-12.000 | D33 | 12.0 |
| 0.3150-0.4921 | 8.000-12.500 | D33 | 12.5 |
| 0.3150-0.5000 | 8.000-12.700 | D36 | 12.7 |
Note: The above hole sizes are recommended for soft wire.In case of hard wire drawing,the maximum hole size should not exceed 65% of them.
3. Application:
It is used for Medical Industry.
4. Advantage:
Longest die life of any die material, Highest production efficiency with less downtime and predictable surface finish of wire.
