0.100mm To 0.400mm PCD Drawing Dies Trapezoidal Wire Drawing Die Material

I'm Online Chat Now

0.100mm To 0.400mm PCD Drawing Dies Trapezoidal Wire Drawing Die Material

0.100mm To 0.400mm PCD Drawing Dies Trapezoidal Wire Drawing Die Material
0.100mm To 0.400mm PCD Drawing Dies Trapezoidal Wire Drawing Die Material

Large Image :  0.100mm To 0.400mm PCD Drawing Dies Trapezoidal Wire Drawing Die Material

Product Details:
Place of Origin: China
Model Number: Shape Drawing Dies
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton, Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 pieces per day
Detailed Product Description

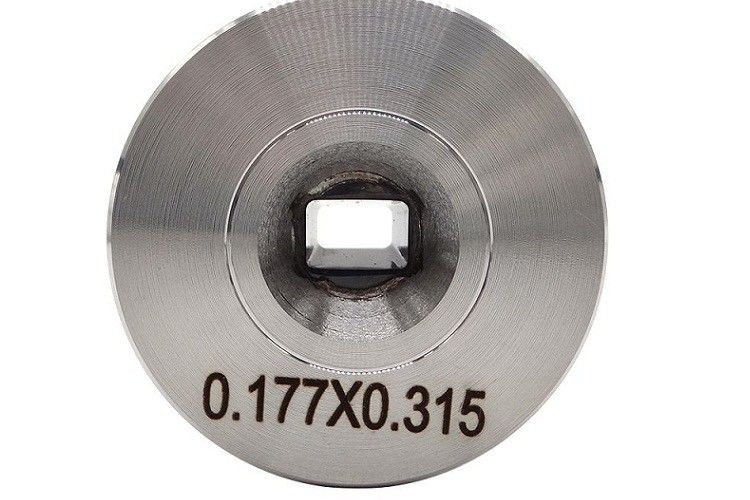

Wire Drawing Dies: Shape Drawing Dies Material: PCD Insert, Tungsten Carbide Insert
Size: Customized Size Shape: Customized Shapes
Type: Mold Tool Transport: By Air
Highlight:

0.1mm PCD Drawing Dies

,

0.4mm PCD Drawing Dies

,

trapezoidal wire drawing die material

Shaped Drawing Dies, Wire Drawing Dies



1. Description:



Customized to match your requirements and available in virtually any form. Additionally, we can help you with engineering the series of dies that will gradually transform your wire or rod from one shape into another.



2. Specifications:



Our shaped dies are customized to match your requirements and are available in virtually any form. Shapes include trapezoidal, rectangular, trolley, hexagonal, z-shape, square, triangular, trapezium, oval, half-round, trilobular, shapes for transmission cable, and trolley wire (virtually any shape is available).



inches mm ADDMA Maximum Diameter
0.0039-0.0157 0.100-0.400 D6 0.4
0.0079-0.0315 0.200-0.800 D12 0.8
0.0079-0.0394 0.200-1.000 D12 1.0
0.0197-0.0591 0.500-1.500 D15 1.5
0.0197-0.0591 0.500-1.500 D15 1.5
0.0315-0.0787 0.800-2.000 D18 2.0
0.0315-0.0787 0.800-2.000 D18 2.0
0.0472-0.1181 1.200-3.100 D21 3.1
0.0472-0.1181 1.200-3.100 D21 3.1
0.0591-0.1732 1.500-4.400 D24 4.4
0.0591-0.1732 2.000-4.400 D24 4.4
0.1299-0.2126 3.300-5.400 D27 5.4
0.1299-0.2183 3.300-5.800 D27 5.8
0.2008-0.2992 5.100-7.600 D30 7.6
0.3150-0.4331 8.000-11.000 D33 11.0
0.3150-0.4409 8.000-11.200 D30 11.2
0.3150-0.4724 8.000-12.000 D33 12.0
0.3150-0.4921 8.000-12.500 D33 12.5
0.3150-0.5000 8.000-12.700 D36 12.7



3. Application:



Shape Drawing Dies are used to reduce the diameter or to transform one wire shape into another. Applications include various types of ferrous and non-ferrous rods and wires.



4. Advantages:

  • We can help you engineer a series of dies that will gradually transform round or shaped wire or rod into another shape.

  • Our shape drawing dies are manufactured with a mirror polish and a smooth wire entry to ensure optimal die life and string-up.
