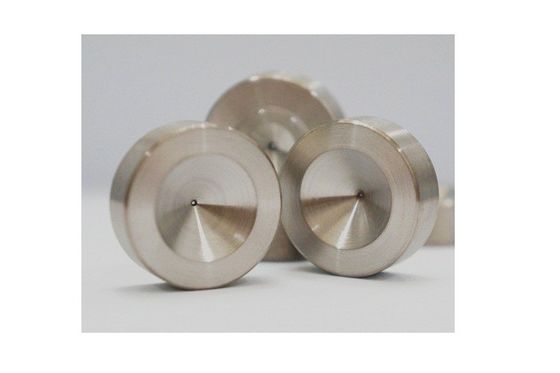

D27 Carbide Wire Drawing Dies 0.3mm To 3Mm For Wire Drawing Industry

D27 Carbide Wire Drawing Dies 0.3mm To 3Mm For Wire Drawing Industry
D27 Carbide Wire Drawing Dies 0.3mm To 3Mm For Wire Drawing Industry D27 Carbide Wire Drawing Dies 0.3mm To 3Mm For Wire Drawing Industry

Large Image :  D27 Carbide Wire Drawing Dies 0.3mm To 3Mm For Wire Drawing Industry

Product Details:
Place of Origin: China
Model Number: PCD Tin Coating Dies
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton, Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 pieces per day
Detailed Product Description
Wire Drawing Dies: PCD Tin Coating Dies Material: PCD
Size: Customized Size Application: Wire Drawing Industry
Mold Life: 1-2 Years Transport: By Air
Highlight:

D27 Wire Drawing Dies

,

Wire Drawing Dies 0.3mm

,

carbide drawing dies 3Mm

PCD Tin Coating Dies, Wire Drawing Dies



1. Description:



PCD(Polycrystalline Diamond) Tin Coating Dies are available. Each blank of the Tin Coating Die is selected strictly to ensure there are no crack and impurities. Advanced machines and complete production processes make the Tin Coating Dies to be accurate, consistent.



2. Specifications:



Available Sizes: 0.3mm~3.0 mm



inches mm ADDMA Maximum Diameter
0.0039-0.0157 0.100-0.400 D6 0.4
0.0079-0.0315 0.200-0.800 D12 0.8
0.0079-0.0394 0.200-1.000 D12 1.0
0.0197-0.0591 0.500-1.500 D15 1.5
0.0197-0.0591 0.500-1.500 D15 1.5
0.0315-0.0787 0.800-2.000 D18 2.0
0.0315-0.0787 0.800-2.000 D18 2.0
0.0472-0.1181 1.200-3.100 D21 3.1
0.0472-0.1181 1.200-3.100 D21 3.1
0.0591-0.1732 1.500-4.400 D24 4.4
0.0591-0.1732 2.000-4.400 D24 4.4
0.1299-0.2126 3.300-5.400 D27 5.4
0.1299-0.2183 3.300-5.800 D27 5.8
0.2008-0.2992 5.100-7.600 D30 7.6
0.3150-0.4331 8.000-11.000 D33 11.0
0.3150-0.4409 8.000-11.200 D30 11.2
0.3150-0.4724 8.000-12.000 D33 12.0
0.3150-0.4921 8.000-12.500 D33 12.5
0.3150-0.5000 8.000-12.700 D36 12.7



3. Application:

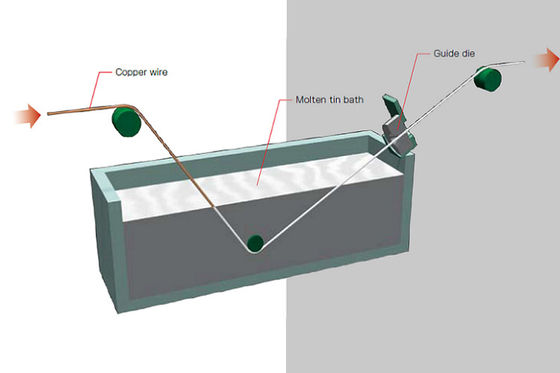

Tin Coating Dies' special titanium casing make the dies float on the tin solution and then finish the tin coating process. And the big die exit make the tin solution not stain on the casing.



4. Advantage:

D27 Carbide Wire Drawing Dies 0.3mm To 3Mm For Wire Drawing Industry 0

  • Inner hole is not easy to be blocked

  • Long life time

  • Good tin coating effect

  • Predictable wire surface

  •
