Diamond Core Pcd Drawing Dies Wire Drawing Die Profile 0.800-2.000mm

Diamond Core Pcd Drawing Dies Wire Drawing Die Profile 0.800-2.000mm
Diamond Core Pcd Drawing Dies Wire Drawing Die Profile 0.800-2.000mm

Large Image :  Diamond Core Pcd Drawing Dies Wire Drawing Die Profile 0.800-2.000mm

Product Details:
Place of Origin: China
Model Number: Diamond Dies
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton, Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 pieces per day
Detailed Product Description
Wire Drawing Dies: Diamond Dies Material: Diamond Core
Surface Treatment: Polishing Application: Wire Drawing Industry
Mold Life: 1-2 Years Transport: By Air
Highlight:

Diamond Core pcd drawing dies

,

pcd drawing dies 0.8MM

,

wire drawing die profile 2MM

Wire Drawing Dies, Diamond Dies



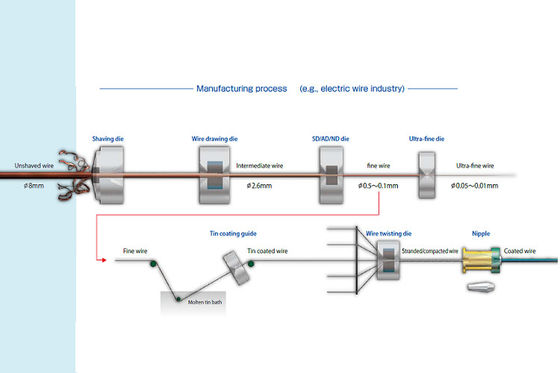

1. Description:



Diamond dies are used for precision drawing of various metal wires. We provide products that satisfy our customers' growing demands for precision and performance, by assuring high quality using state-of-the-art technology, and by making sure to confirm the following five points all the time.

  • Selection of correct types of raw diamonds
  • Proper die hole profile according to wire materials
  • Strict compliance with size and circularity tolerances
  • Satisfactory mirror polishing of die hole surfaces
  • Firm and accurate mounting



2. Specifications:



inches mm ADDMA Maximum Diameter
0.0039-0.0157 0.100-0.400 D6 0.4
0.0079-0.0315 0.200-0.800 D12 0.8
0.0079-0.0394 0.200-1.000 D12 1.0
0.0197-0.0591 0.500-1.500 D15 1.5
0.0197-0.0591 0.500-1.500 D15 1.5
0.0315-0.0787 0.800-2.000 D18 2.0
0.0315-0.0787 0.800-2.000 D18 2.0
0.0472-0.1181 1.200-3.100 D21 3.1
0.0472-0.1181 1.200-3.100 D21 3.1
0.0591-0.1732 1.500-4.400 D24 4.4
0.0591-0.1732 2.000-4.400 D24 4.4
0.1299-0.2126 3.300-5.400 D27 5.4
0.1299-0.2183 3.300-5.800 D27 5.8
0.2008-0.2992 5.100-7.600 D30 7.6
0.3150-0.4331 8.000-11.000 D33 11.0
0.3150-0.4409 8.000-11.200 D30 11.2
0.3150-0.4724 8.000-12.000 D33 12.0
0.3150-0.4921 8.000-12.500 D33 12.5
0.3150-0.5000 8.000-12.700 D36 12.7

Note: The above hole sizes are recommended for soft wire.In case of hard wire drawing,the maximum hole size should not exceed 65% of them.



3. Application:



Suitable for drawing soft and hard wires.
