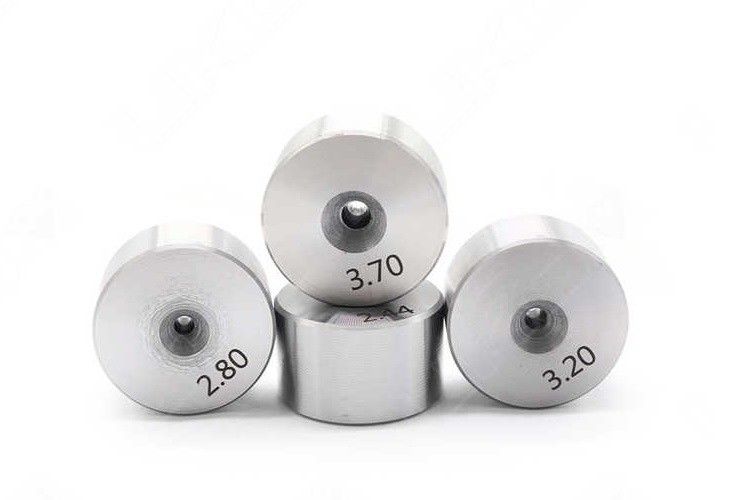

D24 PCD Wire Dies Polycrystalline Diamond Dies Wire Drawing

D24 PCD Wire Dies Polycrystalline Diamond Dies Wire Drawing
D24 PCD Wire Dies Polycrystalline Diamond Dies Wire Drawing

Large Image :  D24 PCD Wire Dies Polycrystalline Diamond Dies Wire Drawing

Product Details:
Place of Origin: China
Model Number: D6 - D36
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton, Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 pieces per day
Detailed Product Description
PCD Drawing Dies: Soft Wires And Hard Wires Material: Polycrystalline Diamond Core
Hole Type: Round Mould Wire Gague: AWG, SWG
Casing: Stainless Steel Transport: By Air
Highlight:

D24 Polycrystalline Diamond Dies

,

0.8mm Polycrystalline Diamond Dies

,

D24 PCD Wire Die

D24 PCD Wire Dies, Polycrystalline Diamond Dies, Wire Drawing Dies



1. Description:



The maximum recommend hole of D24 is 4.4mm. PCD(Polycrystalline Diamond) is a kind of synthetic diamonds. The carbon molecule forms PCD under ultra high temperature and press. Strong bond between diamond particles make PCD have higher abrasive resistance,hardness as well as good thermal conductivity.



2. Specifications:



inches mm ADDMA Maximum Diameter
0.0039-0.0157 0.100-0.400 D6 0.4
0.0079-0.0315 0.200-0.800 D12 0.8
0.0079-0.0394 0.200-1.000 D12 1.0
0.0197-0.0591 0.500-1.500 D15 1.5
0.0197-0.0591 0.500-1.500 D15 1.5
0.0315-0.0787 0.800-2.000 D18 2.0
0.0315-0.0787 0.800-2.000 D18 2.0
0.0472-0.1181 1.200-3.100 D21 3.1
0.0472-0.1181 1.200-3.100 D21 3.1
0.0591-0.1732 1.500-4.400 D24 4.4
0.0591-0.1732 2.000-4.400 D24 4.4
0.1299-0.2126 3.300-5.400 D27 5.4
0.1299-0.2183 3.300-5.800 D27 5.8
0.2008-0.2992 5.100-7.600 D30 7.6
0.3150-0.4331 8.000-11.000 D33 11.0
0.3150-0.4409 8.000-11.200 D30 11.2
0.3150-0.4724 8.000-12.000 D33 12.0
0.3150-0.4921 8.000-12.500 D33 12.5
0.3150-0.5000 8.000-12.700 D36 12.7

Note: The above hole sizes are recommended for soft wire.In case of hard wire drawing,the maximum hole size should not exceed 65% of them.



3. Application:



Flexible wire:copper wire,aluminum wire,brass wire,gold wire,aluminum magnesium alloy,copper clad steel wire,etc.
Hard wire:stainless steel wire,copper plated wire,copper plated wire,tungsten wire,molybdenum wire,cutting wire,chromium wire,nickel wire,etc.



4. Advantage:



Polycrystalline diamond (PCD) is a kind of artificially sintered diamond,which can be used in all wet drawing and dry drawing processes,polycrystalline diamond high temperature pressing and alloy bond sintering. Polycrystalline diamond (PCD) wire drawing dies is the longest die life of all materials,which can provide the highest production efficiency and reduce downtime.



D24 PCD Wire Dies Polycrystalline Diamond Dies Wire Drawing 0
