| Type: | Drill Bit, Cutting Tools | Certification: | ISO9001 |
|---|---|---|---|
| Application: | Oil Or Gas Drilling | Size: | 1308/1313/1613/1616/1913/1919 |
| Feature: | High Wear Resistance, High Impact Resistance | Packing: | Plastic Box |
| Highlight: | 1616 oil and gas well drilling,15.88mm oil and gas well drilling,polycrystalline diamond cutter 16.0mm |
||

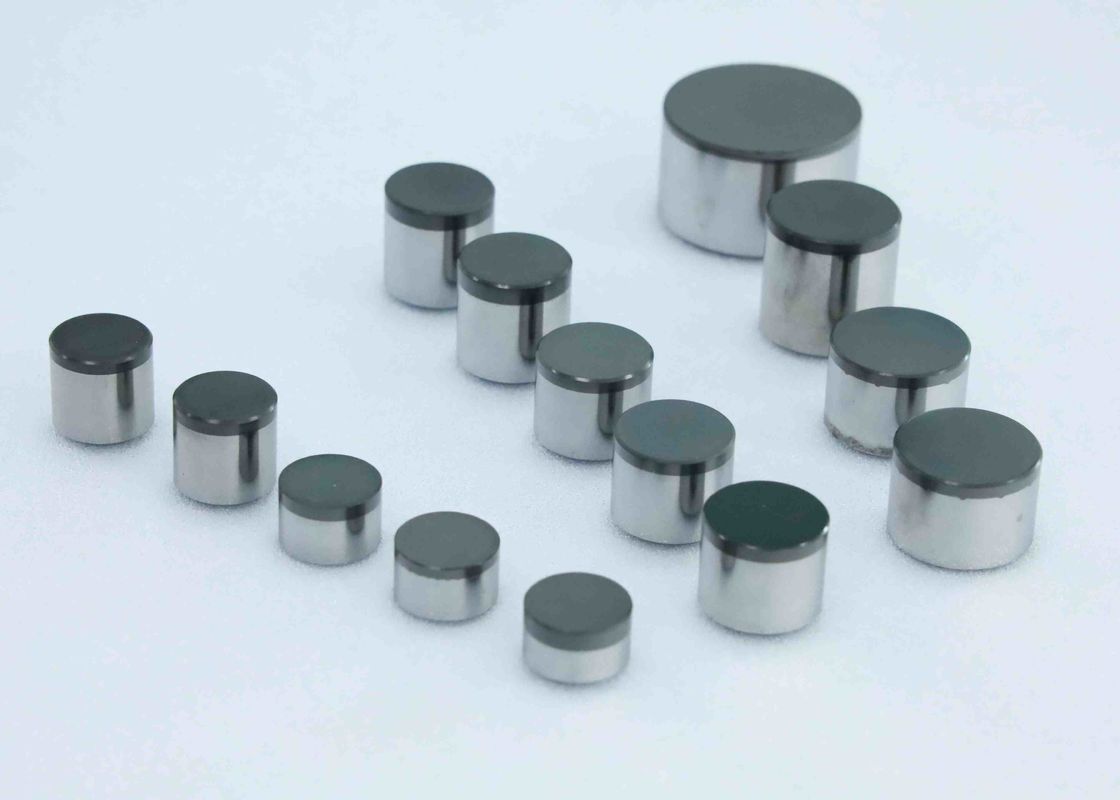

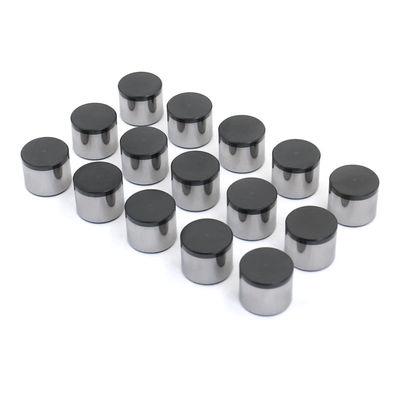

PDC Cutters for Oil and Gas Drilling diamond pdc polycrystalline diamond cutter
PDC cutters for oil gas drilling are made by special interface design, can well optimized and promote the cutters’ performance, increase the drill bit’s mechanical speed, extend the drill bit’s working life, help customers to save the drilling cost and improve the efficiency.
PRODUCT SPECIFICATION
Standard sizes of PDC cutters are shown below.
| Item | Diameter(mm) | Height(mm) |
| 1308 | 13.44 | 8.0 |
| 1313 | 13.44 | 13.2 |
| 1608 | 15.88 | 8.0 |
| 1613 | 15.88 | 13.2 |
| 1616 | 15.88 | 16.0 |
| 1908 | 19.05 | 8.0 |
| 1913 | 19.05 | 13.2 |
| 1916 | 19.05 | 16.0 |
| 1919 | 19.05 | 19.0 |
Remark : Size of product and chamfer can be customized.
APPLICATION
Designed for high speed drilling in shale, limestone, and sandstone formations
FEATURE
1. Superior quality with lasting service life
2. Prompt responds
3. On-time delivery
