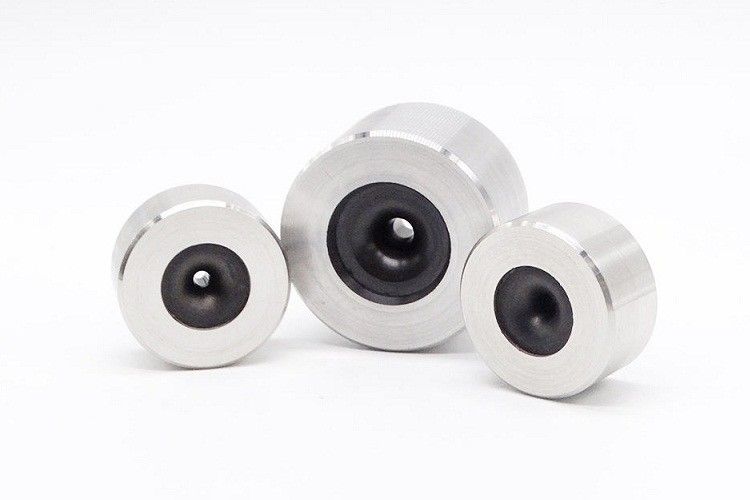

Nano Diamond Coated Pcd Diamond Drawing Die Diamond Stranding

Nano Diamond Coated Pcd Diamond Drawing Die Diamond Stranding
Nano Diamond Coated Pcd Diamond Drawing Die Diamond Stranding

Large Image :  Nano Diamond Coated Pcd Diamond Drawing Die Diamond Stranding

Product Details:
Place of Origin: China
Model Number: Nano Diamond Coated Dies
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton, Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 pieces per day
Detailed Product Description
Diamond Drawing Dies: Nano Diamond Coated Dies Material: Nano Diamond Coated
Size: Customized Size Casing: Stainless Steel
Type: Mold Tool Transport: By Air
Highlight:

3.0mm diamond drawing die

,

60.0mm diamond drawing die

,

Nano pcd drawing die

Nano Diamond Coated Dies for Stranding, Diamond Drawing Dies, Diamond Stranding Dies



1. Description:



Nano Diamond Coated Dies have unique nanocrystalline diamond composite structures(chemical vapor deposition CVD ) to achieve significant productivity improvements.The diamond coating makes nano dies exceptional in durability and smoothness.



2. Specifications:



Hole diamond: 3.0~60.0mm



Size Range Natural Diamond Dies
(ND Dies)
Mono Diamond Dies
(MD Dies)
Φ mm Φ inch
0.012 - 0.059 0.0005 - 0.0023
0.060 - 0.099 0.0024 - 0.0039
0.100 - 0.599 0.0039 - 0.0236
0.600 - 1.199 0.0236 - 0.0472
... ... ... ...



3. Application:



Copper, aluminum, brass, aluminum alloys, low-high carbon and stainless steel wires and tubes.



4. Advantages:

  • Reference life of die: drawing aluminum wire is more than 30 times of cemented carbide die, drawing low carbon steel wire is more than 20 times of cemented carbide die, drawing medium carbon steel wire is more than 30 times of cemented carbide die.
  • No change in hole diameter when the die is scrapped. No need to repair.
  • The working face has high finish and remains the same.
  • High dimensional accuracy.

Nano Diamond Coated Pcd Diamond Drawing Die Diamond Stranding 0
