Product Details:
Payment & Shipping Terms:
|
| Wire Drawing Dies: | PCD Drawing Dies | Material: | Polycrystalline Diamond |
|---|---|---|---|
| Shape: | Round | Surface Treatment: | Polishing |
| Application: | Wire Drawing Industry | Mold Life: | 1-2 Years |
| Highlight: | D6 Wire Drawing Dies,non ferrous Wire Drawing Dies,0.4mm ferrous die casting |
||

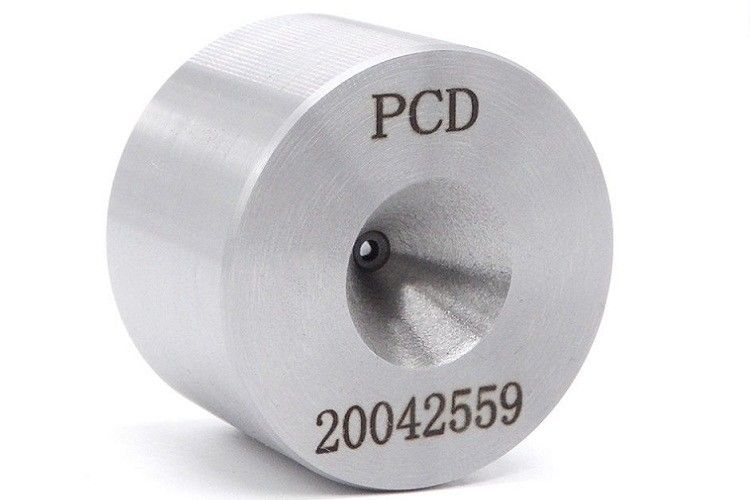

Wire Drawing Dies for ferrous and non-ferrous wire
1. Description:
Polycrystalline Diamond (PCD) Wire Drawing Dies can be used for a wide range of drawing applications. PCD Dies offer a high resistance to wear and an excellent wire surface finish.
2. Specifications:
| inches | mm | ADDMA | Maximum Diameter |
| 0.0039-0.0157 | 0.100-0.400 | D6 | 0.4 |
| 0.0079-0.0315 | 0.200-0.800 | D12 | 0.8 |
| 0.0079-0.0394 | 0.200-1.000 | D12 | 1.0 |
| 0.0197-0.0591 | 0.500-1.500 | D15 | 1.5 |
| 0.0197-0.0591 | 0.500-1.500 | D15 | 1.5 |
| 0.0315-0.0787 | 0.800-2.000 | D18 | 2.0 |
| 0.0315-0.0787 | 0.800-2.000 | D18 | 2.0 |
| 0.0472-0.1181 | 1.200-3.100 | D21 | 3.1 |
| 0.0472-0.1181 | 1.200-3.100 | D21 | 3.1 |
| 0.0591-0.1732 | 1.500-4.400 | D24 | 4.4 |
| 0.0591-0.1732 | 2.000-4.400 | D24 | 4.4 |
| 0.1299-0.2126 | 3.300-5.400 | D27 | 5.4 |
| 0.1299-0.2183 | 3.300-5.800 | D27 | 5.8 |
| 0.2008-0.2992 | 5.100-7.600 | D30 | 7.6 |
| 0.3150-0.4331 | 8.000-11.000 | D33 | 11.0 |
| 0.3150-0.4409 | 8.000-11.200 | D30 | 11.2 |
| 0.3150-0.4724 | 8.000-12.000 | D33 | 12.0 |
| 0.3150-0.4921 | 8.000-12.500 | D33 | 12.5 |
| 0.3150-0.5000 | 8.000-12.700 | D36 | 12.7 |
Note: The above hole sizes are recommended for soft wire.In case of hard wire drawing,the maximum hole size should not exceed 65% of them.
3. Application:
The dies can be used in ferrous and non-ferrous wire drawing applications.
4. Advantage:
