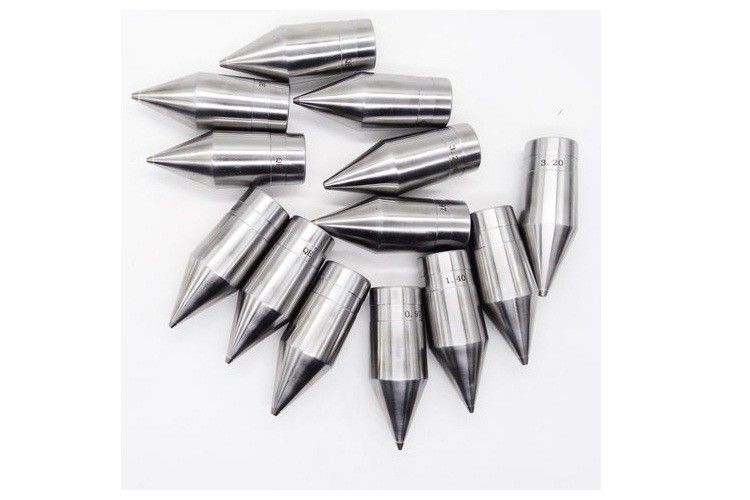

0.1mm Tungsten Carbide Wire Drawing Dies Pcd Drawing Die

0.1mm Tungsten Carbide Wire Drawing Dies Pcd Drawing Die
0.1mm Tungsten Carbide Wire Drawing Dies Pcd Drawing Die

Large Image :  0.1mm Tungsten Carbide Wire Drawing Dies Pcd Drawing Die

Product Details:
Place of Origin: China
Model Number: Extrusion Tips and Dies
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton, Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 pieces per day
Detailed Product Description
Wire Drawing Dies: Extrusion Tips And Dies Material: Diamond, Tungsten Carbide
Shape: Customized Shape Size: Customized Size
Type: Mold Tool Transport: By Air
Highlight:

0.1mm Wire Drawing Dies

,

Tungsten Carbide Wire Drawing Dies

,

pcd drawing die 0.059mm

Wire Drawing Extrusion Tips and Dies, Wire Drawing Dies



1. Description:



Extrude insulation onto your wire, cable or fiber-optic cable with exceptional precision and uniformity using extrusion tips and dies. Each custom-manufactured tip and die is individually engineered with unique applications expertise, then 100% tested for concentricity verification, to ensure proper wire centering. The end result is an insulated wire with uniform insulation thickness and precise conductor centering that provides the correct electrical characteristics in your finished product.



2. Specifications:



Available sizes: Above 0.1mm

Core Material: Diamond, Tungsten Carbide





Size Range Natural Diamond Dies
(ND Dies)
Mono Diamond Dies
(MD Dies)
Φ mm Φ inch
0.012 - 0.059 0.0005 - 0.0023
0.060 - 0.099 0.0024 - 0.0039
0.100 - 0.599 0.0039 - 0.0236
0.600 - 1.199 0.0236 - 0.0472
... ... ... ...



3. Application:



Precision-insulated wire and cable, including Category 5, 6 and 7 products where consistent electrical properties are required. Telephone, telecommunication and electronic cables



4. Advantages:

  • Custom made to your specifications.
  • Standard styles and sizes available for immediate shipment.
