Product Details:
Payment & Shipping Terms:
|
Material: | PDC Cutters | Application: | Mining And Water Conservancy, Natural Gas, Well Drilling, Crushing, Water Well |
---|---|---|---|
Size: | 3" 3.5" 4" 5" 6" 8" 10" 12" | Advantage: | High-efficiency, High Drilling Efficiency, Longer Life, Factory Manufactures, High Strength |
Color: | Golden Or As Your Order | Packing: | Wooden Box |
Weight: | 5kg~110kg | ||
Highlight: | 65mm Matrix PDC Bit,1308 coal water Matrix PDC Bit,12" mining drill bits |
PDC Mining Drill Bits,Diamond drill bit, mine, coal, mining,water well

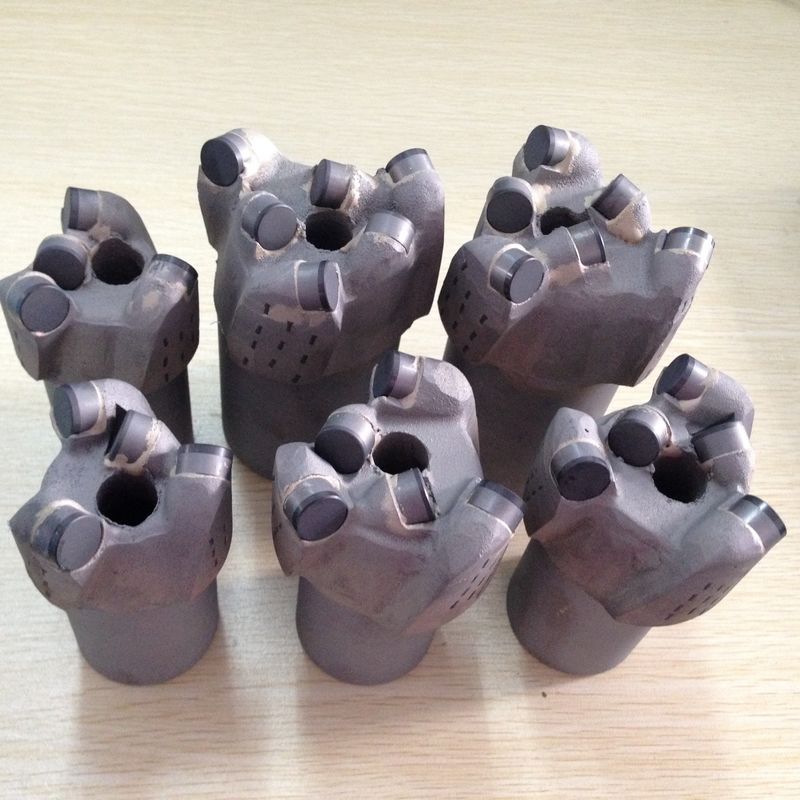

Matrix PDC Bit
Matrix body PDC bit flat head is made by PDC cutters brazed to tungsten carbide sintered matrix Body. With higher strength of tungsten carbide as the body, the bit has good anti-erosive and the increased the toughness. With premium PDC cutters, the bit has enhanced reliability and drilling efficiency.Compared with steel body PDC drill bit,matrix drill bit has higher strength,suitable for more hard rock.
Application
Matrix body PDC bit is mainly used in water well, geothermal well, degassing hole, drain hole, construction and grouting hole of coal mine
Diameter mm |
PDC Cutter |
Thread |
56mm |
1308 |
AW |
65mm |
1308 |
BW |
76mm |
1308 |
BW |
94mm |
1308 |
BW API Reg 2 3/8 |
113mm |
1308 |
BW API Reg 2 3/8 |
We also can produce and design as per clients’ drawings/samples/requirements.
