Product Details:
Payment & Shipping Terms:
|
| PCD Drawing Dies: | Enamelling Dies | Material: | Natural Diamond |
|---|---|---|---|
| Size: | Customized Size | Shape: | Customized Shapes |
| Type: | Mold Tool | Transport: | By Air |
| Highlight: | anti leakage Diamond Drawing Dies,Diamond Drawing Dies 0.600MM,1.199MM Enamelling Dies |
||
Enamelling Dies, Diamond Drawing Dies
1. Description:

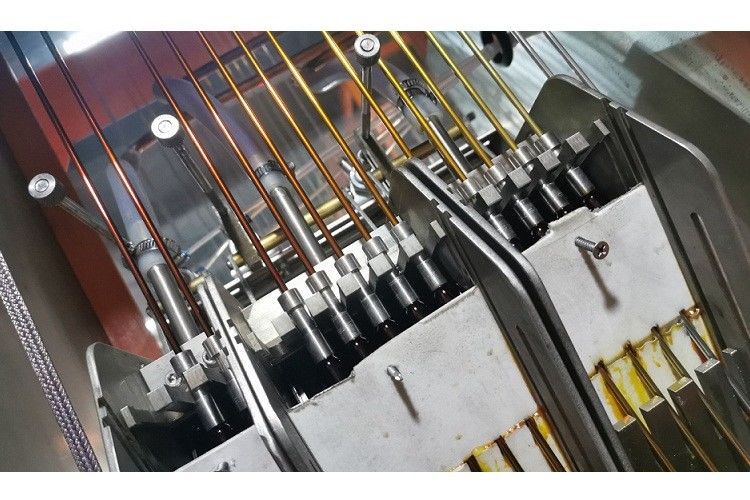

Enamelling Dies are used for insulating magnet wire. The die's geometric structure makes it easy to lead the wire and the anti-leakage design guarantees the evenness and fineness of the insulating paint. Customers can choose the insert and type of enamelling dies according to their demand. Some customers prefer natural diamonds for enamelling dies.
| Size Range | Natural Diamond Dies (ND Dies) |
Mono Diamond Dies (MD Dies) |
|
| Φ mm | Φ inch | ||
| 0.012 - 0.059 | 0.0005 - 0.0023 | √ | √ |
| 0.060 - 0.099 | 0.0024 - 0.0039 | √ | √ |
| 0.100 - 0.599 | 0.0039 - 0.0236 | √ | √ |
| 0.600 - 1.199 | 0.0236 - 0.0472 | √ | √ |
| ... | ... | ... | ... |
2. Specifications:
3. Application:
Used for wire coating.
4. Advantage:
Enamelling Dies with natural diamond insert have better suface finish, which can guarantee better enamelling precision and consitency.
