MD Diamond Drawing Dies Stainless Steel Die 0.012mm To 1.20mm

I'm Online Chat Now

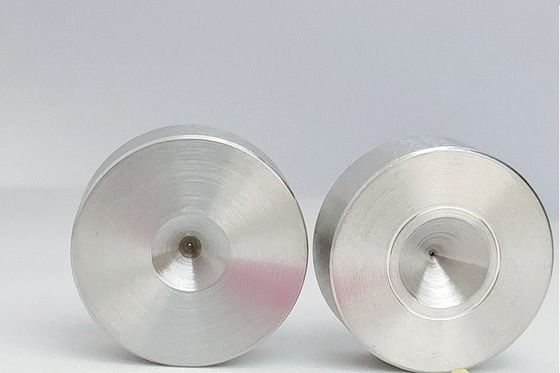

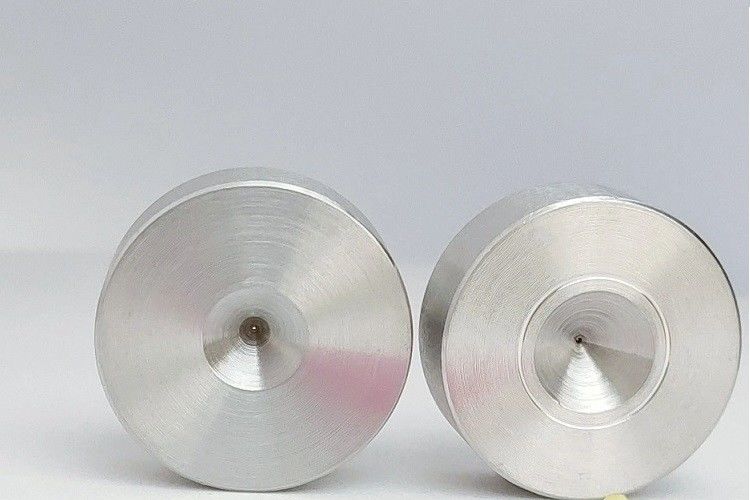

MD Diamond Drawing Dies Stainless Steel Die 0.012mm To 1.20mm

MD Diamond Drawing Dies Stainless Steel Die 0.012mm To 1.20mm
MD Diamond Drawing Dies Stainless Steel Die 0.012mm To 1.20mm

Large Image :  MD Diamond Drawing Dies Stainless Steel Die 0.012mm To 1.20mm

Product Details:
Place of Origin: China
Model Number: 0.012~1.20 mm
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Carton, Box
Delivery Time: 5-8 work day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200pcs each day
Detailed Product Description
Diamond Drawing Dies: MD Dies Material: Mono Diamond
Hole Size: 0.012~1.20 Mm Surface Treatment: Polishing
Casing: Stainless Steel Type: Mold Tool
Highlight:

Diamond Drawing Dies 0.012mm

,

Diamond Drawing Dies 1.20mm

,

MD Mono diamond stainless steel die

MD Dies, Diamond Drawing Dies



1. Description:



Our Mono Diamonds are imported abroad. Every piece of diamond is selected strictly to ensure there is no crack, no defects. Good inner structure ensures a long life time and well performance of a natural diamond dies in wire drawing process.



2. Specification:

Size Range Natural Diamond Dies
(ND Dies)
Mono Diamond Dies
(MD Dies)
Φ mm Φ inch
0.012 - 0.059 0.0005 - 0.0023
0.060 - 0.099 0.0024 - 0.0039
0.100 - 0.599 0.0039 - 0.0236
0.600 - 1.199 0.0236 - 0.0472
... ... ... ...



3. Application:



Suitable for drawing copper wire, stainless steel wire, bonding wire, steel wire, precious metal wire, special alloy wire and etc.



4. Advantages:



MD Dies are similar with ND which can used in all ND die's application. Typically for fine wire and ultra fine wire drawing or in the requirements of excellent wire surface finish, good heat dissipation performance and other applications to maintain a wide range of applications.



MD Diamond Drawing Dies Stainless Steel Die 0.012mm To 1.20mm 0
