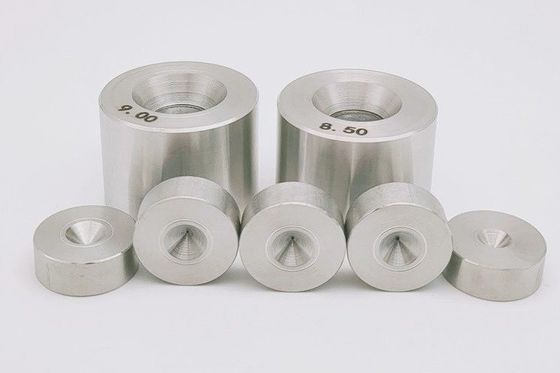

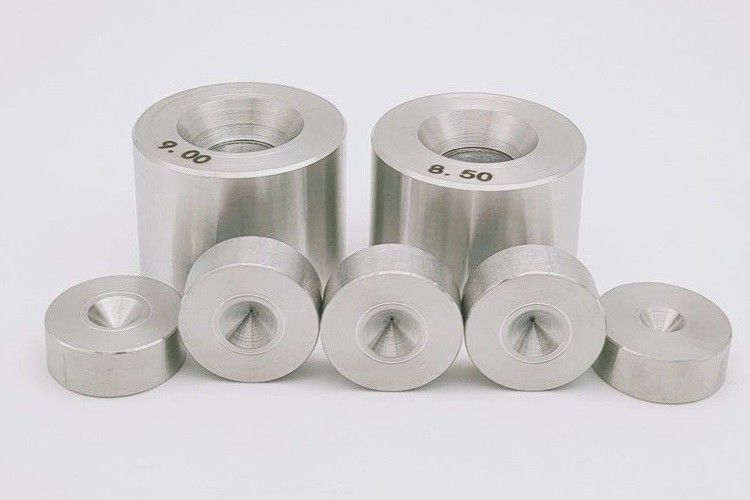

Bunching Diamond Drawing Dies PCD Wire Die 0.100MM - 0.599MM

Bunching Diamond Drawing Dies PCD Wire Die 0.100MM - 0.599MM
Bunching Diamond Drawing Dies PCD Wire Die 0.100MM - 0.599MM

Large Image :  Bunching Diamond Drawing Dies PCD Wire Die 0.100MM - 0.599MM

Product Details:
Place of Origin: China
Model Number: Bunching Drawing Dies
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton, Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 pieces per day
Detailed Product Description
Diamond Drawing Dies: Bunching Drawing Dies Material: PCD Insert
Size: Customized Size Casing: Stainless Steel
Type: Mold Tool Transport: By Air
Highlight:

Diamond Drawing Dies 0.100MM

,

Diamond Drawing Dies 0.599MM

,

Bunching PCD wire Die

Bunching Drawing Dies, Diamond Drawing Dies



1. Description:



Bunching Drawing Dies, the bundle and strand moulds, are used to guide and / or organize the wire through the bunching machine and stranding machine,the winding drum of the double and single twist bunching machine is inside the machine,and the mold is fixed at the entrance of the machine to collect the wire.



Size Range Natural Diamond Dies
(ND Dies)
Mono Diamond Dies
(MD Dies)
Φ mm Φ inch
0.012 - 0.059 0.0005 - 0.0023
0.060 - 0.099 0.0024 - 0.0039
0.100 - 0.599 0.0039 - 0.0236
0.600 - 1.199 0.0236 - 0.0472
... ... ... ...



2. Specifications:



Available Sizes: 0.35~35.0mm.



3. Application:



The die is fixed to the front of the winding drum inside the machine to regulate the wire, and the strand mold of the tubular and basket strander is inside the machine to guide and concentrate the wire.
