Diamond Drawing Dies: | Compacting Drawing Dies | Material: | PCD Insert |
---|---|---|---|
Size: | Customized Size | Casing: | Stainless Steel |
Type: | Mold Tool | Transport: | By Air |
Highlight: | 0.35mm Compacting Die,35.0mm Wire Compacting Die,PCD Insert Polycrystalline Diamond Dies |

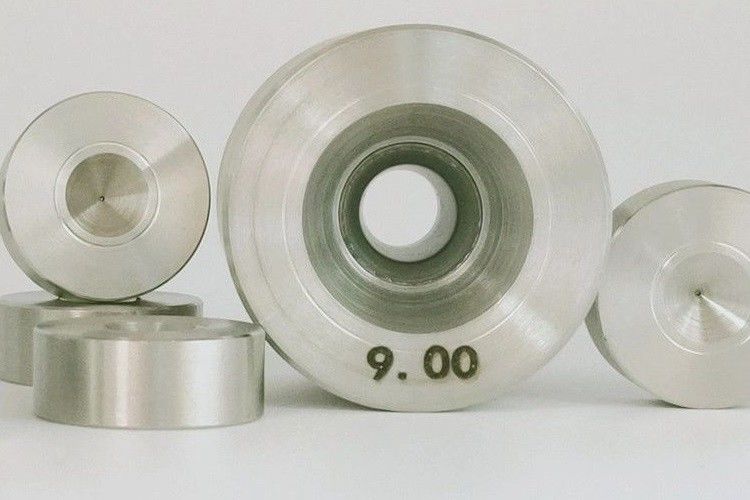

Wire Compacting Dies, Diamond Drawing Dies
1. Description:
Wire Compacting Dies, the bundle and strand moulds, are used to guide and / or organize the wire through the bunching machine and stranding machine,the winding drum of the double and single twist bunching machine is inside the machine,and the mold is fixed at the entrance of the machine to collect the wire.
2. Specifications:
Available Sizes: 0.35~35.0mm.
Size Range | Natural Diamond Dies (ND Dies) |
Mono Diamond Dies (MD Dies) |
|
Φ mm | Φ inch | ||
0.012 - 0.059 | 0.0005 - 0.0023 | √ | √ |
0.060 - 0.099 | 0.0024 - 0.0039 | √ | √ |
0.100 - 0.599 | 0.0039 - 0.0236 | √ | √ |
0.600 - 1.199 | 0.0236 - 0.0472 | √ | √ |
... | ... | ... | ... |
3. Application:
Wire Compacting Dies are used to guide and organize wire through wiring machines and winch machines for wire and cable stranding.
