Copper Bronze PCD Cutting Tool Blanks PCD Tips 5um 10um 25um

I'm Online Chat Now

Copper Bronze PCD Cutting Tool Blanks PCD Tips 5um 10um 25um

Copper Bronze PCD Cutting Tool Blanks PCD Tips 5um 10um 25um
Copper Bronze PCD Cutting Tool Blanks PCD Tips 5um 10um 25um Copper Bronze PCD Cutting Tool Blanks PCD Tips 5um 10um 25um

Large Image :  Copper Bronze PCD Cutting Tool Blanks PCD Tips 5um 10um 25um

Product Details:
Place of Origin: China
Model Number: Cutting Tips
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Packaging Details: Plastic box, Carton
Delivery Time: 5-8 workdays
Payment Terms: T/T, Western Union, L/C
Supply Ability: Unlimited
Detailed Product Description
PCD Cutting Tool Blanks: PCD Tips Material: PCD And Tunngsten Carbide
Shape: Any Shape Grain Size: 5μm, 10μm, 25μm
Application: Cutting Transport: By Air
Highlight:

PCD Cutting Tool Blanks 5um

,

PCD Cutting Tool Blanks 10um

,

PCD Tips 25um

PCD Tips, PCD Cutting Tips, PCD Cutting Tool Blanks



1. Description:



PCD for different grain sizes, polished or non-polished, whole disc or cut tips, PCD/carbide thickness. According to the needs of practical application, we have three series of products of fine granularity, medium granularity and coarse granularity for you to choose.



2. Specification:



Both regular and irregular PCD cut tips in various shapes or profiles are available in accordance with customers’drawings.



Grain Size Type Property Application

Fine

5 μm

Round disc

Cutting tips

Good surface finishing Used for copper, bronze, aluminum, plastic, wood composites;

Medium

10 μm

Round disc

Cutting tips

General purpose, a good balance of toughness and wear resistance Used for low-medium silicon aluminum alloys, copper alloys, wood composites, etc.

Coarse

25 μm

Round disc

Cutting tips

Good wear resistance Used for high silicon aluminum alloys, metal matrix composites, laminate flooring, carbide alloy, ceramics, etc.

























1). Special overall thickness, such as 0.8mm. 1.0mm, 1.2mm, 2.5mm, etc. are available for customization.

2). Special PCD thicknesses are also available for customization.



3. Application:



It is used to machine wide range materials such as nonferrous metal, ceramic, rock, carbon fiber plastic, and etc.



Product name
Size
Applicable workpiece

Product Photo Show

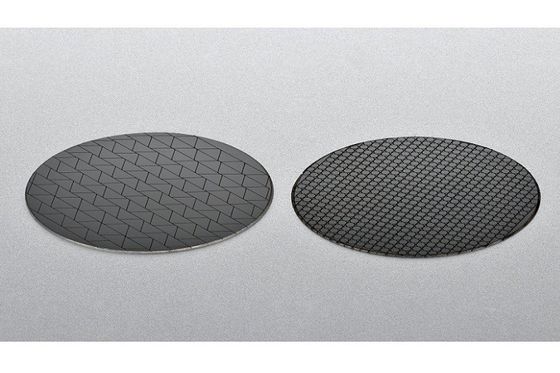

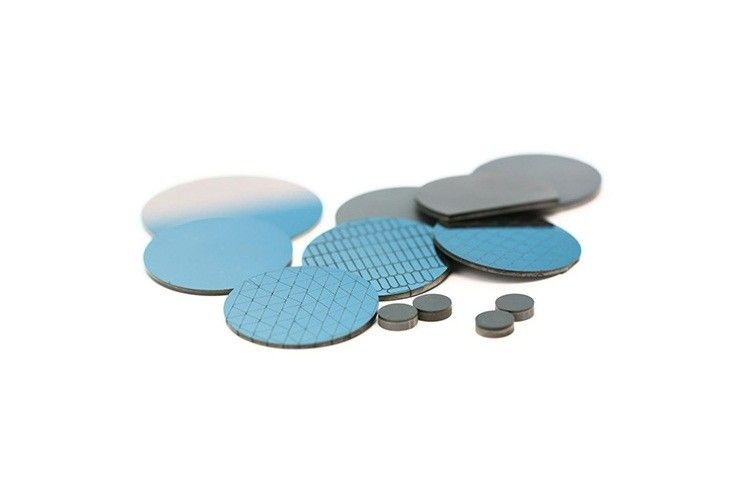

PCD cutting tool blanks, PCD wafer
