Product Details:
Payment & Shipping Terms:
|
| PCD Cutting Tool Blanks: | Electronic Industry (3C) PCD | Shape: | Round |
|---|---|---|---|
| Size: | 58mm | Grain Size: | 5μm, 10μm, 25μm |
| Application: | Cutting | Transport: | By Air |
| Highlight: | Electronic Industry pcd cutting tools,pcd cutting tools for Cutting,5um 10um Round pcd die blanks |
||
Electronic Industry (3C) PCD, PCD Blanks, PCD Discs, PCD Cutting Tool Blanks
1. Description:
We have equipped with many production facilities and inspection instruments for PCD cutting tool blanks, such as SEM, ultrasonic scanning technology (C-SCAN), etc. We also have capabilities of large-diameter PCD disc sintering, proven PCD surface processing, polishing and cutting technologies.
2. Specification:
| Grain Size | Type | Property | Application |
|
Fine 5 μm |
Round disc Cutting tips |
Good surface finishing | Used for copper, bronze, aluminum, plastic, wood composites; |
|
Medium 10 μm |
Round disc Cutting tips |
General purpose, a good balance of toughness and wear resistance | Used for low-medium silicon aluminum alloys, copper alloys, wood composites, etc. |
|
Coarse 25 μm |
Round disc Cutting tips |
Good wear resistance | Used for high silicon aluminum alloys, metal matrix composites, laminate flooring, carbide alloy, ceramics, etc. |
3. Application:

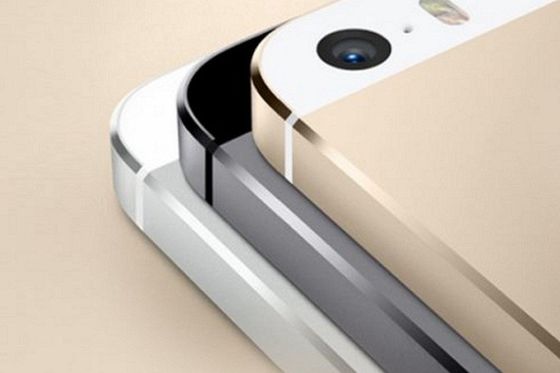

PCD blanks and cut pieces (tips) in medium fine grain size are applicable for cutting and processing other areas such mobile phone frame, key, electronic circuit boards, etc., which requires better surface finish. And the coarse grain sizes are also widely used for processing different materials in building & constructing industry, such as graphite, stone, carbon fiber composite materials, etc., which require higher wear resistance tools.
| Product name | |
| Size | |
| Applicable workpiece | |
|

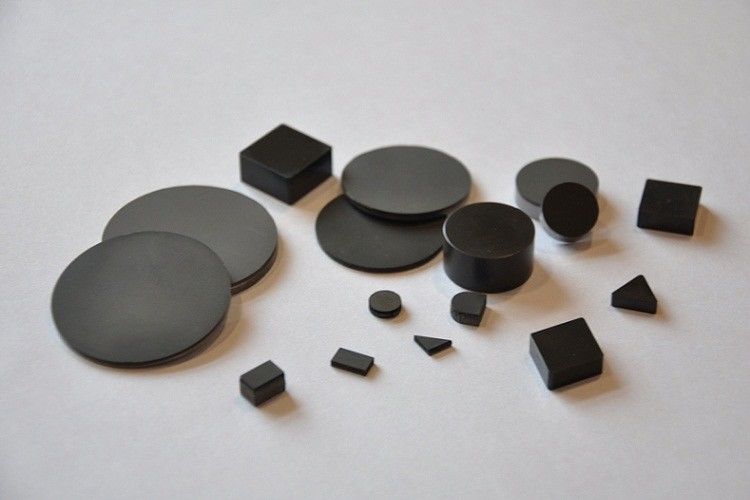

Product Photo Show
|
|
