Product Details:
Payment & Shipping Terms:
|
| PCD Drawing Dies: | Extrusion Tools | Material: | Diamond Insert, Tungsten Carbide Insert |
|---|---|---|---|
| Size: | Customized Size | Shape: | Customized Shapes |
| Type: | Mold Tool | Transport: | By Air |
| Highlight: | Extrusion Tools pcd wire drawing dies,0.1mm pcd wire drawing dies,0.01mm Concentricity Polycrystalline Diamond Dies |
||

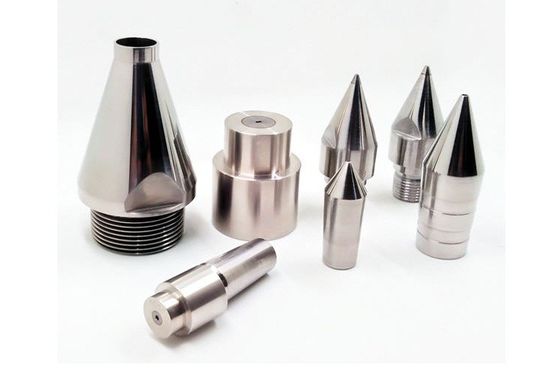

Extrusion Tools, Diamond Drawing Dies
1. Description:
Super-hard material inserts in the wire guides, diamond and carbide, ensure long tool life at high extrusion process speeds.
2. Specifications:
Available Sizes: above 0.1mm
Concentricity: +/-0.01mm
| Size Range | Natural Diamond Dies (ND Dies) |
Mono Diamond Dies (MD Dies) |
|
| Φ mm | Φ inch | ||
| 0.012 - 0.059 | 0.0005 - 0.0023 | √ | √ |
| 0.060 - 0.099 | 0.0024 - 0.0039 | √ | √ |
| 0.100 - 0.599 | 0.0039 - 0.0236 | √ | √ |
| 0.600 - 1.199 | 0.0236 - 0.0472 | √ | √ |
| ... | ... | ... | ... |
3. Application:
Telephone,telecommunication and electronic cables.
4. Advantage:

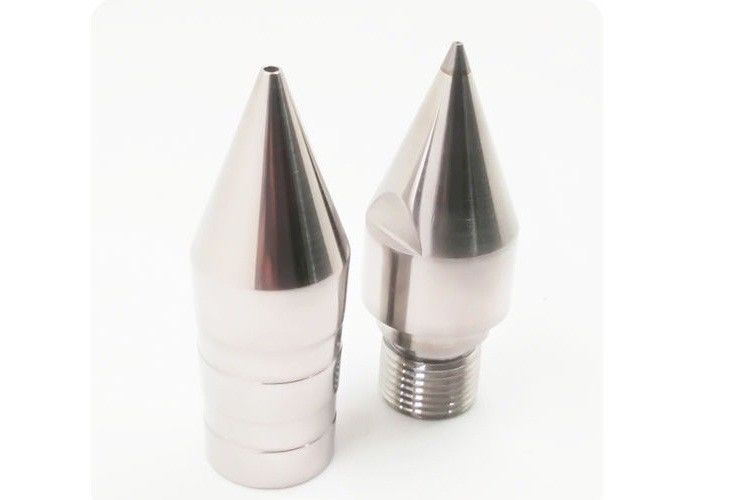

Each custom-manufactured extrusion tip is engineered with unique applications expertise, to ensure proper wire centering.
