0.0024 Inch To 0.0039 Inch Wire Drawing Dies Sscd Drawing Dies Single Crystal

I'm Online Chat Now

0.0024 Inch To 0.0039 Inch Wire Drawing Dies Sscd Drawing Dies Single Crystal

0.0024 Inch To 0.0039 Inch Wire Drawing Dies Sscd Drawing Dies Single Crystal
0.0024 Inch To 0.0039 Inch Wire Drawing Dies Sscd Drawing Dies Single Crystal

Large Image :  0.0024 Inch To 0.0039 Inch Wire Drawing Dies Sscd Drawing Dies Single Crystal

Product Details:
Place of Origin: China
Model Number: 0.012~1.20 mm
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Carton, Box
Delivery Time: 5-8 work day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200pcs each day
Detailed Product Description
Wire Drawing Dies: SSCD Drawing Dies Material: Single Crystal Diamond
Hole Size: 0.012~1.20 Mm Surface Treatment: Polishing
Casing: Stainless Steel Type: Mold Tool
Highlight:

0.0024 Wire Drawing Dies

,

0.0039 inch Wire Drawing Dies

,

sscd drawing dies Single Crystal

SSCD Drawing Dies, Wire Drawing Dies



1. Description:



SSCD dies are an excellent option for manufacturing fine and ultra-fine wires. Single crystal diamond dies provide superior quality, hardness, accuracy and a long service life for each die. SSCD dies yield precision wire with an excellent surface finish, enabling high drawing performance and low power usage due to low friction.



2. Specification:

Size Range Natural Diamond Dies
(ND Dies)
Mono Diamond Dies
(MD Dies)
Φ mm Φ inch
0.012 - 0.059 0.0005 - 0.0023
0.060 - 0.099 0.0024 - 0.0039
0.100 - 0.599 0.0039 - 0.0236
0.600 - 1.199 0.0236 - 0.0472
... ... ... ...



3. Application:



Wire drawing dies are commonly used to reduce the diameter of various ferrous and non-ferrous rods and wires. Applications include high, medium and low voltage cables, automotive, medical wire, superconducting, and bonding wire.



4. Advantages:

  • Synthetic Single Crystal Diamond Drawing Dies (SSCD dies) give the wire manufacturer the ability to produce the smallest sizes of wires with uniform wire roundness and high surface quality while meeting or exceeding the required wire diameter tolerances.
  • SSCD Dies enable long drawing die life with long lasting dimensional tolerances, even for high demanding applications. Our SSCD drawing dies are manufactured with a mirror polish and a smooth wire entry to ensure optimal die life and string-up.

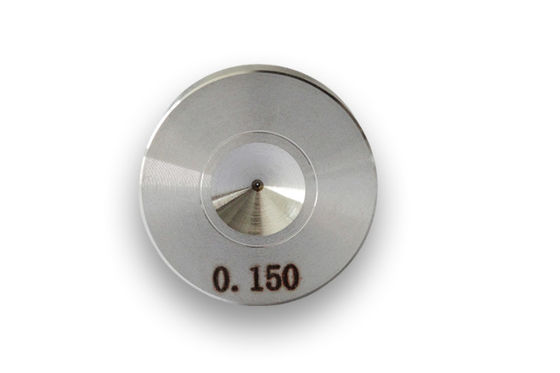

0.0024 Inch To 0.0039 Inch Wire Drawing Dies Sscd Drawing Dies Single Crystal 0
