Product Details:
Payment & Shipping Terms:
|
| Wire Drawing Dies: | TC Drawing Dies | Material: | Tungsten Carbide |
|---|---|---|---|
| Hole Size: | 1.20~120.0 Mm | Casing: | Stainless Steel |
| Type: | Mold Tool | Transport: | By Air |
| Highlight: | 1.2mm Wire Drawing Dies,120.0mm Wire Drawing Dies,D33 tc drawing dies |
||
TC Drawing Dies, Wire Drawing Dies
1. Description:
TC Drawing Dies are an excellent option for manufacturing ferrous rod-size wires, and for relatively short production and trial runs. Tungsten carbide blanks have extreme density, hardness, and strength. Drawing dies are available in round sizes 0.1 mm and larger.
2. Specification:
Available Sizes: 1.20~120.0mm
| inches | mm | ADDMA | Maximum Diameter |
| 0.0039-0.0157 | 0.100-0.400 | D6 | 0.4 |
| 0.0079-0.0315 | 0.200-0.800 | D12 | 0.8 |
| 0.0079-0.0394 | 0.200-1.000 | D12 | 1.0 |
| 0.0197-0.0591 | 0.500-1.500 | D15 | 1.5 |
| 0.0197-0.0591 | 0.500-1.500 | D15 | 1.5 |
| 0.0315-0.0787 | 0.800-2.000 | D18 | 2.0 |
| 0.0315-0.0787 | 0.800-2.000 | D18 | 2.0 |
| 0.0472-0.1181 | 1.200-3.100 | D21 | 3.1 |
| 0.0472-0.1181 | 1.200-3.100 | D21 | 3.1 |
| 0.0591-0.1732 | 1.500-4.400 | D24 | 4.4 |
| 0.0591-0.1732 | 2.000-4.400 | D24 | 4.4 |
| 0.1299-0.2126 | 3.300-5.400 | D27 | 5.4 |
| 0.1299-0.2183 | 3.300-5.800 | D27 | 5.8 |
| 0.2008-0.2992 | 5.100-7.600 | D30 | 7.6 |
| 0.3150-0.4331 | 8.000-11.000 | D33 | 11.0 |
| 0.3150-0.4409 | 8.000-11.200 | D30 | 11.2 |
| 0.3150-0.4724 | 8.000-12.000 | D33 | 12.0 |
| 0.3150-0.4921 | 8.000-12.500 | D33 | 12.5 |
| 0.3150-0.5000 | 8.000-12.700 | D36 | 12.7 |
3. Application:

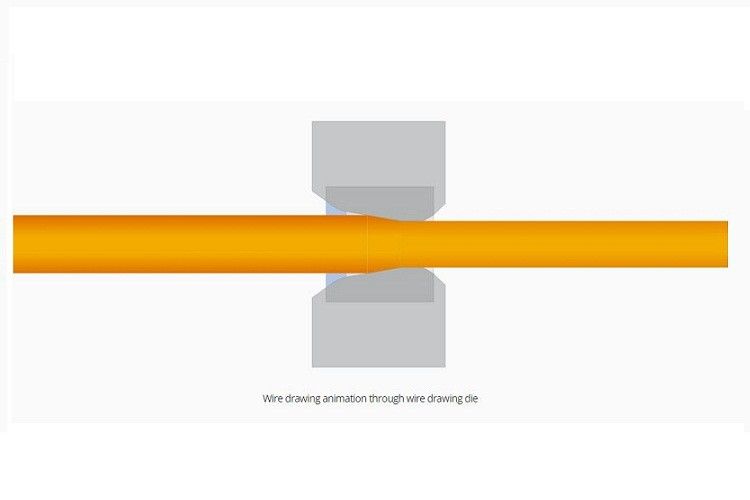

Wire drawing dies are commonly used to reduce the diameter of various ferrous and non-ferrous rods and wires. Applications include various grades of low, medium and high carbon steels, steel alloys, stainless steel, welding wire as well as various non-ferrous rods and wires.
4. Advantages:
Tungsten carbide dies are an excellent option for manufacturing ferrous rod-size wires. They are also ideal for short trial runs. Our TC drawing dies are manufactured with a mirror polish and a smooth wire entry to ensure optimal die life and string-up.
We offers a complete line of TC drawing dies for rod-size wire down to medium-size wire.
