Wire Drawing Dies: | Tubing Drawing Dies | Material: | TC, PCD, SSCD And ND |
---|---|---|---|
Surface Treatment: | Polishing | Application: | Wire Drawing Industry |
Mold Life: | 1-2 Years | Transport: | By Air |
Highlight: | D36 Wire Drawing Dies,100mm Wire Drawing Dies,D36 metric split die set |

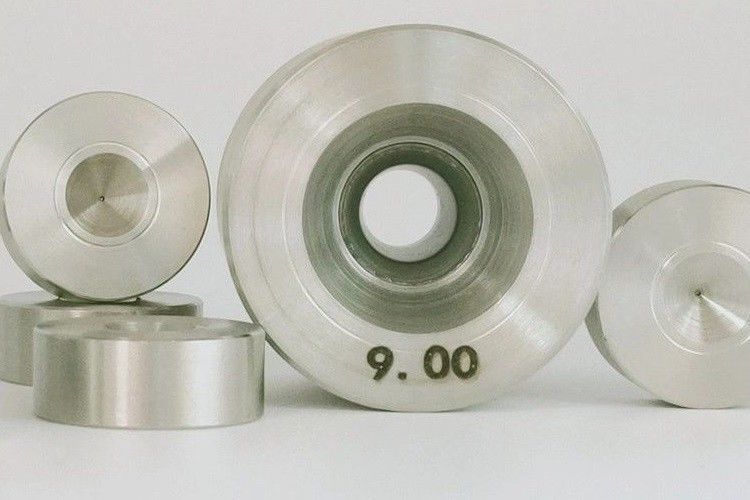

Tubing Drawing Dies, Wire Drawing Dies
1. Description:
A large selection of ultra-hard inserts allow for an almost infinite range of tube sizes that can be manufactured. If you have difficulties obtaining the correct wall thickness and a high quality tube surface finish then we can help you.
2. Specifications:
Available Sizes: Up to 100mm.
inches | mm | ADDMA | Maximum Diameter |
0.0039-0.0157 | 0.100-0.400 | D6 | 0.4 |
0.0079-0.0315 | 0.200-0.800 | D12 | 0.8 |
0.0079-0.0394 | 0.200-1.000 | D12 | 1.0 |
0.0197-0.0591 | 0.500-1.500 | D15 | 1.5 |
0.0197-0.0591 | 0.500-1.500 | D15 | 1.5 |
0.0315-0.0787 | 0.800-2.000 | D18 | 2.0 |
0.0315-0.0787 | 0.800-2.000 | D18 | 2.0 |
0.0472-0.1181 | 1.200-3.100 | D21 | 3.1 |
0.0472-0.1181 | 1.200-3.100 | D21 | 3.1 |
0.0591-0.1732 | 1.500-4.400 | D24 | 4.4 |
0.0591-0.1732 | 2.000-4.400 | D24 | 4.4 |
0.1299-0.2126 | 3.300-5.400 | D27 | 5.4 |
0.1299-0.2183 | 3.300-5.800 | D27 | 5.8 |
0.2008-0.2992 | 5.100-7.600 | D30 | 7.6 |
0.3150-0.4331 | 8.000-11.000 | D33 | 11.0 |
0.3150-0.4409 | 8.000-11.200 | D30 | 11.2 |
0.3150-0.4724 | 8.000-12.000 | D33 | 12.0 |
0.3150-0.4921 | 8.000-12.500 | D33 | 12.5 |
0.3150-0.5000 | 8.000-12.700 | D36 | 12.7 |
3. Application:
Wire drawing dies are commonly used to reduce the diameter of various ferrous and non-ferrous rods and tubes. Applications include automotive, medical wire, superconducting, and welding wires.
4. Advantage:
Our tubing dies give the manufacturer the ability to maintain a uniform tube roundness, wall thickness and minimize material usage.
Our tubing dies are customized to match your requirements. We can help you with engineering the correct drawing die size and geometry that will create the tube with the correct diameter and correct wall-thickness.
Contact Person: Zhang
Tel: 18837137981
