1.2mm 2.5mm PCD Cutting Tool Blanks Cutting Tool Materials For Electronic Industry

I'm Online Chat Now

1.2mm 2.5mm PCD Cutting Tool Blanks Cutting Tool Materials For Electronic Industry

1.2mm 2.5mm PCD Cutting Tool Blanks Cutting Tool Materials For Electronic Industry
1.2mm 2.5mm PCD Cutting Tool Blanks Cutting Tool Materials For Electronic Industry 1.2mm 2.5mm PCD Cutting Tool Blanks Cutting Tool Materials For Electronic Industry 1.2mm 2.5mm PCD Cutting Tool Blanks Cutting Tool Materials For Electronic Industry

Large Image :  1.2mm 2.5mm PCD Cutting Tool Blanks Cutting Tool Materials For Electronic Industry

Product Details:
Place of Origin: China
Model Number: Round Disc
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Packaging Details: Plastic box, Carton
Delivery Time: 5-8 workdays
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1500 pieces per month
Detailed Product Description

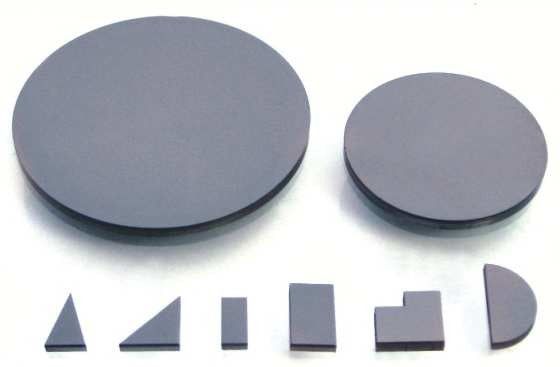

PCD Cutting Tool Blanks: PCD Blanks Shape: Round
Size: 58mm Grain Size: 5μm, 10μm, 25μm
Application: Cutting Transport: By Air
Highlight:

1.2mm PCD Cutting Tool Blanks

,

2.5mm PCD Cutting Tool Blanks

,

aluminum cutting tool materials

PCD Blanks for Electronic industry (3C), PCD Discs, PCD Cutting Tool Blanks



1. Description:



We have equipped with many production facilities and inspection instruments for PCD cutting tool blanks, such as SEM, ultrasonic scanning technology (C-SCAN), etc. We also have capabilities of large-diameter PCD disc sintering, proven PCD surface processing, polishing and cutting technologies.



2. Specification:



Grain Size Type Property Application

Fine

5 μm

Round disc

Cutting tips

Good surface finishing Used for copper, bronze, aluminum, plastic, wood composites;

Medium

10 μm

Round disc

Cutting tips

General purpose, a good balance of toughness and wear resistance Used for low-medium silicon aluminum alloys, copper alloys, wood composites, etc.

Coarse

25 μm

Round disc

Cutting tips

Good wear resistance Used for high silicon aluminum alloys, metal matrix composites, laminate flooring, carbide alloy, ceramics, etc.























1). Special overall thickness, such as 0.8mm. 1.0mm, 1.2mm, 2.5mm, etc. are available for customization.

2). Special PCD thicknesses are also available for customization.

3). Both regular and irregular PCD cut tips in various shapes or profiles are available in accordance with customers’drawings.



3. Application:

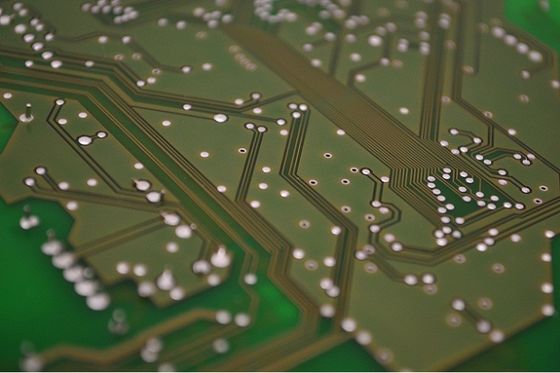

PCD products in medium fine grain sizes are also applicable for processing mobile phone frame, key, electronic circuit boards, etc., which require better surface finish.
