Product Details:
Payment & Shipping Terms:
|
| PCD Cutting Tool Blanks: | PCD Blanks | Shape: | Round |
|---|---|---|---|
| Size: | 58mm | Grain Size: | 5μm, 10μm, 25μm |
| Application: | Cutting | Transport: | By Air |
| Highlight: | Building industry PCD Cutting Tool Blanks,bronze PCD Cutting Tool Blanks,Building industry polycrystalline diamond pcd |
||

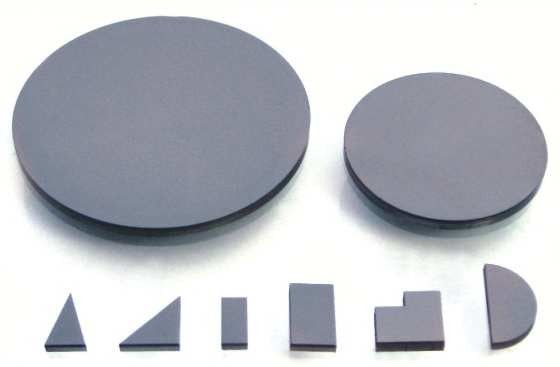

PCD Blanks for Building materials industry, PCD Discs, PCD Cutting Tool Blanks
1. Description:
We have equipped with many production facilities and inspection instruments for PCD cutting tool blanks, such as SEM, ultrasonic scanning technology (C-SCAN), etc. We also have capabilities of large-diameter PCD disc sintering, proven PCD surface processing, polishing and cutting technologies.
We focuse on developing new PCD cutting tool blank grades which are suited to cutting and machining the variety of new and emerging materials in industry, and for tools targeted to meet our customers’ needs.
2. Specification:
| Grain Size | Type | Property | Application |
|
Fine 5 μm |
Round disc Cutting tips |
Good surface finishing | Used for copper, bronze, aluminum, plastic, wood composites; |
|
Medium 10 μm |
Round disc Cutting tips |
General purpose, a good balance of toughness and wear resistance | Used for low-medium silicon aluminum alloys, copper alloys, wood composites, etc. |
|
Coarse 25 μm |
Round disc Cutting tips |
Good wear resistance | Used for high silicon aluminum alloys, metal matrix composites, laminate flooring, carbide alloy, ceramics, etc. |
1). Special overall thickness, such as 0.8mm. 1.0mm, 1.2mm, 2.5mm, etc. are available for customization.
2). Special PCD thicknesses are also available for customization.
3). Both regular and irregular PCD cut tips in various shapes or profiles are available in accordance with customers’drawings.
3. Application:
PCD products in medium coarse grain sizes are also widely used for processing different materials in building & constructing industry, such as graphite, stone, carbon fiber composite materials, etc., which require higher wear resistance tools.
