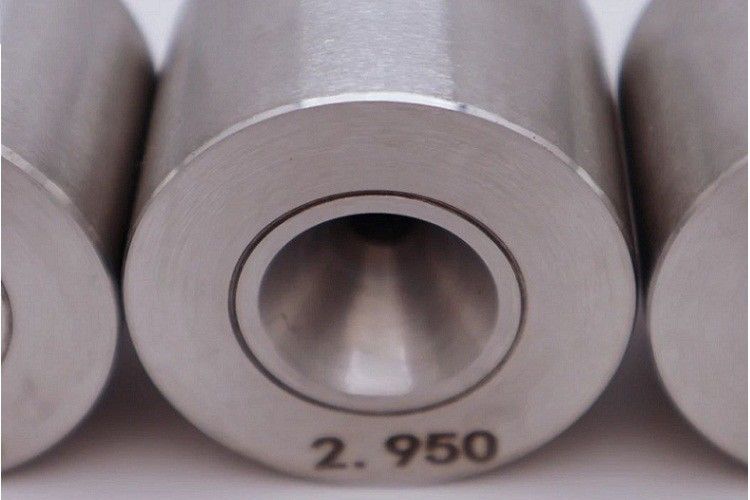

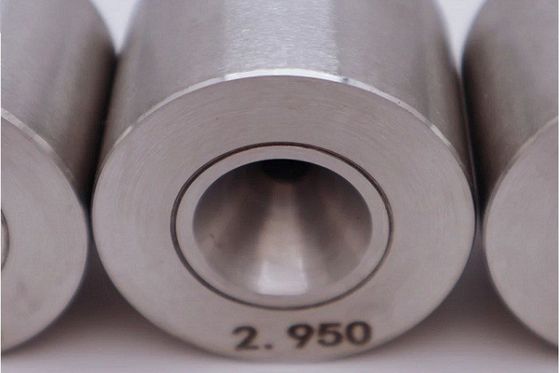

D21 PCD Drawing Dies Wire Drawing Dies 1.200 - 3.100mm

D21 PCD Drawing Dies Wire Drawing Dies 1.200 - 3.100mm
D21 PCD Drawing Dies Wire Drawing Dies 1.200 - 3.100mm

Large Image :  D21 PCD Drawing Dies Wire Drawing Dies 1.200 - 3.100mm

Product Details:
Place of Origin: China
Model Number: D6 - D36
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton, Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 pieces per day
Detailed Product Description
PCD Drawing Dies: Wires And Cables Material: Polycrystalline Diamond Core
Hole Size: 0.10mm-12.7mm Hole Type: Round Mould
Wire Gague: AWG, SWG Casing: Stainless Steel
Highlight:

D21 PCD Drawing Dies

,

PCD Drawing Dies 1.2mm

,

wire drawing dies 3.1mm

D21 PCD Drawing Dies For Wires and Cables



1. Description:



PCD(Polycrystalline Diamond) is a kind of synthetic diamonds. The carbon molecule forms PCD under ultra high temperature and press. Strong bond between diamond particles make PCD have higher abrasive resistance,hardness as well as good thermal conductivity. The maximum recommend hole of D21 is 3.1mm.



2. Specifications:



inches mm ADDMA Maximum Diameter
0.0039-0.0157 0.100-0.400 D6 0.4
0.0079-0.0315 0.200-0.800 D12 0.8
0.0079-0.0394 0.200-1.000 D12 1.0
0.0197-0.0591 0.500-1.500 D15 1.5
0.0197-0.0591 0.500-1.500 D15 1.5
0.0315-0.0787 0.800-2.000 D18 2.0
0.0315-0.0787 0.800-2.000 D18 2.0
0.0472-0.1181 1.200-3.100 D21 3.1
0.0472-0.1181 1.200-3.100 D21 3.1
0.0591-0.1732 1.500-4.400 D24 4.4
0.0591-0.1732 2.000-4.400 D24 4.4
0.1299-0.2126 3.300-5.400 D27 5.4
0.1299-0.2183 3.300-5.800 D27 5.8
0.2008-0.2992 5.100-7.600 D30 7.6
0.3150-0.4331 8.000-11.000 D33 11.0
0.3150-0.4409 8.000-11.200 D30 11.2
0.3150-0.4724 8.000-12.000 D33 12.0
0.3150-0.4921 8.000-12.500 D33 12.5
0.3150-0.5000 8.000-12.700 D36 12.7

Note: The above hole sizes are recommended for soft wire.In case of hard wire drawing,the maximum hole size should not exceed 65% of them.



3. Application:



Suitable for drawing various kinds of wire and cables.



4. Advantage:

  • First class PCD blanks
  • Advanced machines, 100% inspected
  • Good after-sales service
  • Technical assistance



5.
