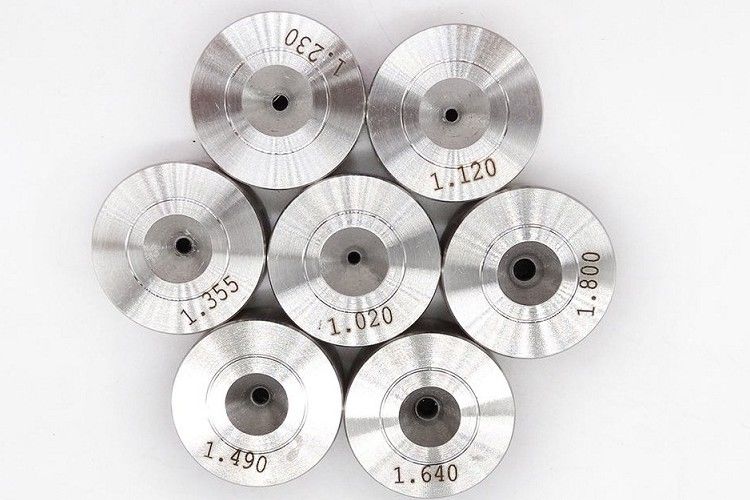

D18 PCD Wire Drawing Die Setup Polycrystalline Diamond Dies

D18 PCD Wire Drawing Die Setup Polycrystalline Diamond Dies
D18 PCD Wire Drawing Die Setup Polycrystalline Diamond Dies

Large Image :  D18 PCD Wire Drawing Die Setup Polycrystalline Diamond Dies

Product Details:
Place of Origin: China
Model Number: D6 - D36
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton, Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 pieces per day
Detailed Product Description
PCD Drawing Dies: Soft Wires And Hard Wires Material: Polycrystalline Diamond Core
Surface Treatment: Polishing Size: Customized Size
Shape: Customized Shapes Application: Wire Drawing Industry
Highlight:

D18 wire drawing die setup

,

PCD wire drawing die setup

,

Polishing tc wire drawing dies

D18 PCD Wire Dies, Wire Drawing Dies, Polycrystalline Diamond Dies



1. Description:



PCD Wire Drawing Die has the longest die life of all materials,which can provide the highest production efficiency and reduce downtime. PCD Core is a kind of artificially sintered diamond,which can be used in all wet drawing and dry drawing processes, polycrystalline diamond high temperature pressing and alloy bond sintering. The maximum recommend hole of D18 is 2.0mm.



2. Specifications:



inches mm ADDMA Maximum Diameter
0.0039-0.0157 0.100-0.400 D6 0.4
0.0079-0.0315 0.200-0.800 D12 0.8
0.0079-0.0394 0.200-1.000 D12 1.0
0.0197-0.0591 0.500-1.500 D15 1.5
0.0197-0.0591 0.500-1.500 D15 1.5
0.0315-0.0787 0.800-2.000 D18 2.0
0.0315-0.0787 0.800-2.000 D18 2.0
0.0472-0.1181 1.200-3.100 D21 3.1
0.0472-0.1181 1.200-3.100 D21 3.1
0.0591-0.1732 1.500-4.400 D24 4.4
0.0591-0.1732 2.000-4.400 D24 4.4
0.1299-0.2126 3.300-5.400 D27 5.4
0.1299-0.2183 3.300-5.800 D27 5.8
0.2008-0.2992 5.100-7.600 D30 7.6
0.3150-0.4331 8.000-11.000 D33 11.0
0.3150-0.4409 8.000-11.200 D30 11.2
0.3150-0.4724 8.000-12.000 D33 12.0
0.3150-0.4921 8.000-12.500 D33 12.5
0.3150-0.5000 8.000-12.700 D36 12.7

Note: The above hole sizes are recommended for soft wire.In case of hard wire drawing,the maximum hole size should not exceed 65% of them.



3. Application:



It is suitable for all applications from large drawing to ultra-fine drawing,with predictable wire surface quality.



4. Advantage:



The wire drawing die is a very important and consumable product used by various metal wire manufacturers to draw wires. The application range of wire drawing dies is very wide, mainly used for drawing straight and difficult-to-machine objects such as bars, wires, wires, pipes, etc., and generally suitable for drawing processing operations of metal and alloy materials such as steel, copper, tungsten, molybdenum, etc. . Since the cost of the wire drawing die can reach more than half of the wire drawing cost, how to reduce the consumption cost of the wire drawing die and increase its service life is the primary problem that metal wire production units urgently need to solve.



5.

5. D18 PCD Wire Drawing Die Setup Polycrystalline Diamond Dies 0
