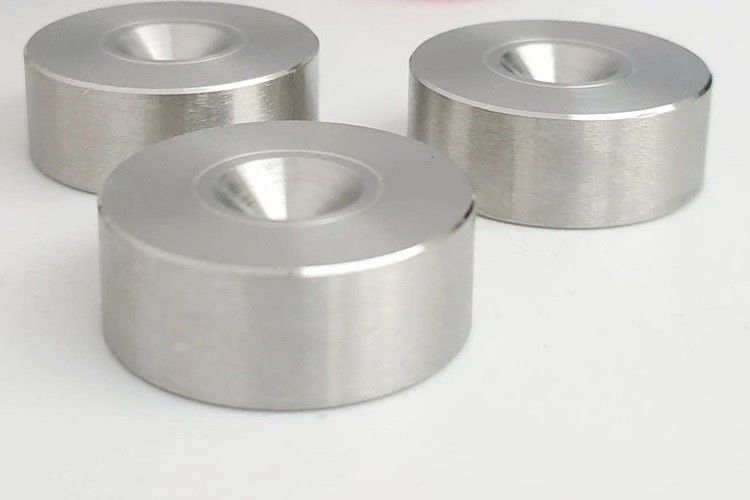

Fine Semi Finished Wire Drawing Dies Polycrystalline Diamond Dies

I'm Online Chat Now

Fine Semi Finished Wire Drawing Dies Polycrystalline Diamond Dies

Fine Semi Finished Wire Drawing Dies Polycrystalline Diamond Dies
Fine Semi Finished Wire Drawing Dies Polycrystalline Diamond Dies

Large Image :  Fine Semi Finished Wire Drawing Dies Polycrystalline Diamond Dies

Product Details:
Place of Origin: China
Model Number: D6 - D36
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton, Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 pieces per day
Detailed Product Description
PCD Drawing Dies: Polycrystalline Diamond Core Size: Customized Size
Hole Type: Round Casing: Stainless Steel
Type: Mold Tool Transport: By Air
Highlight:

Semi Finished Wire Drawing Dies

,

0.002mm toleranceWire Drawing Dies

,

Round Polycrystalline Diamond Dies

Fine Semi-Finished PCD Drawing Dies, Polycrystalline Diamond Dies, Wire Drawing Dies



1. Description:



Provide moulds with different processing degrees according to customer requirements.

Fine Semi-Finished PCD Drawing Dies: casing + drilling hole+ refurbishing+ polishing



2. Specifications:



Size(inch) Size(mm) Tolerance(mm) Roundness(mm)
≤0.0039 ≤0.100 0.001 0.0005
0.00398~0.0079 0.101~0.200 0.001 0.0005
0.00791~0.0197 0.201~0.500 0.002 0.001
0.01972~0.0394 0.501~1.000 0.003 0.0015
0.03941~0.0590 1.001~1.500 0.005 0.0025
0.0591~0.07870 1.501~2.000 0.007 0.0035
≥0.0788 ≥2.001 0.01 0.005



3. Inner Geometry:



Inner geometry of diamond dies combined with "Entrance, approaching, reduction, bearing length and exit part".
a. Entrance: For wire entering,prevent the dies from wire hurting.
b. Approaching: Make the wire to be accessible for lubricant.
c. Reduction : The wire begins to transform from original diameter to smaller diameter.
d. Bearing: The wire achieves to the final diameter.
e. Back Relief: Prevent the final wire surface from scratching.
f. Exit: Wire exiting.



4. Advantage:

  • Longest die life of any die material, Highest production efficiency with less downtime.
  • All PCD blanks contain randomly oriented diamond particles. The result is a perfectly round wear pattern for each die, ensuring that your wire remains round.
