PCD Drawing Dies: | Soft Wires And Hard Wires | Size: | Customized Size |
---|---|---|---|
Material: | Polycrystalline Diamond Core | Surface Treatment: | Polishing |
Application: | Wire Drawing Industry | Type: | Mold Tool |
Highlight: | D15 PCD Drawing Dies,PCD Drawing Dies 0.5mm,Polycrystalline Diamond Dies 1.500mm |

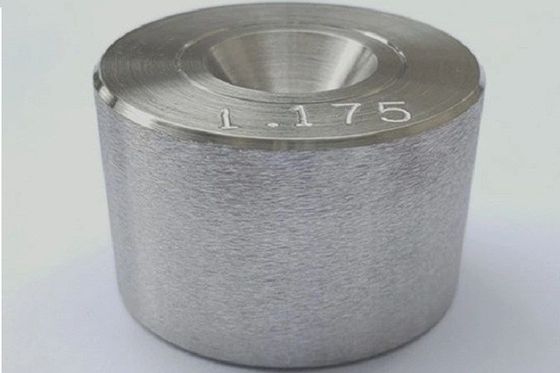

D15 PCD Wire Dies, polycrystalline diamond dies, Wire Drawing Dies For Soft Wires and Hard Wires
1. Description:
Polycrystalline diamond (PCD) is a kind of artificially sintered diamond,which can be used in all wet drawing and dry drawing processes, polycrystalline diamond high temperature pressing and alloy bond sintering. The maximum recommend hole of D15 is 1.5mm.
Polycrystalline diamond (PCD) Wire Drawing Die is the longest die life of all materials,which can provide the highest production efficiency and reduce downtime.
2. Specifications:
inches | mm | ADDMA | Maximum Diameter |
0.0039-0.0157 | 0.100-0.400 | D6 | 0.4 |
0.0079-0.0315 | 0.200-0.800 | D12 | 0.8 |
0.0079-0.0394 | 0.200-1.000 | D12 | 1.0 |
0.0197-0.0591 | 0.500-1.500 | D15 | 1.5 |
0.0197-0.0591 | 0.500-1.500 | D15 | 1.5 |
0.0315-0.0787 | 0.800-2.000 | D18 | 2.0 |
0.0315-0.0787 | 0.800-2.000 | D18 | 2.0 |
0.0472-0.1181 | 1.200-3.100 | D21 | 3.1 |
0.0472-0.1181 | 1.200-3.100 | D21 | 3.1 |
0.0591-0.1732 | 1.500-4.400 | D24 | 4.4 |
0.0591-0.1732 | 2.000-4.400 | D24 | 4.4 |
0.1299-0.2126 | 3.300-5.400 | D27 | 5.4 |
0.1299-0.2183 | 3.300-5.800 | D27 | 5.8 |
0.2008-0.2992 | 5.100-7.600 | D30 | 7.6 |
0.3150-0.4331 | 8.000-11.000 | D33 | 11.0 |
0.3150-0.4409 | 8.000-11.200 | D30 | 11.2 |
0.3150-0.4724 | 8.000-12.000 | D33 | 12.0 |
0.3150-0.4921 | 8.000-12.500 | D33 | 12.5 |
0.3150-0.5000 | 8.000-12.700 | D36 | 12.7 |
Note: The above hole sizes are recommended for soft wire.In case of hard wire drawing,the maximum hole size should not exceed 65% of them.
3. Application:
Flexible wire:copper wire,aluminum wire,brass wire,gold wire,aluminum magnesium alloy,copper clad steel wire,etc.
Hard wire:stainless steel wire,copper plated wire,copper plated wire,tungsten wire,molybdenum wire,cutting wire,chromium wire,nickel wire,etc.
4. Advantage:
It is suitable for all applications from large drawing to ultra-fine drawing,with predictable wire surface quality.
There are three types of polycrystalline diamond core: non-reinforced ring type, reinforced ring type and heat stable setting type.
