Wire Drawing Dies: | PCD Drawing Dies | Material: | Polycrystalline Diamond |
---|---|---|---|
Shape: | Round | Surface Treatment: | Polishing |
Application: | Wire Drawing Industry | Mold Life: | 1-2 Years |
Highlight: | 0.500MM PCD Drawing Dies,1.500MM PCD Drawing Dies,wire drawing machine die D15 |

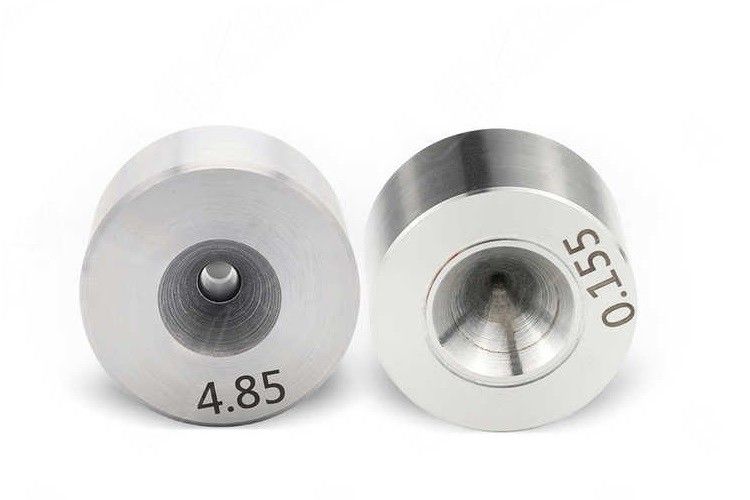

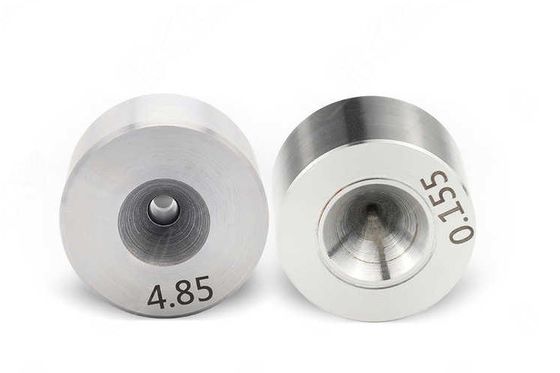

PCD Drawing Dies, Wire Drawing Dies
1. Description:
PCD Drawing Dies are ideal for long production runs and for drawing abrasive wire materials as they outlast TC, SSCD and ND dies. Polycrystalline diamond dies are available in various grain sizes, both in supported and unsupported configurations. PCD dies provide uniform hardness and extended wear resistance in all directions. High-performance polycrystalline diamond dies allow wire manufacturers to meet quality, uptime, and speed requirements.
2. Specifications:
inches | mm | ADDMA | Maximum Diameter |
0.0039-0.0157 | 0.100-0.400 | D6 | 0.4 |
0.0079-0.0315 | 0.200-0.800 | D12 | 0.8 |
0.0079-0.0394 | 0.200-1.000 | D12 | 1.0 |
0.0197-0.0591 | 0.500-1.500 | D15 | 1.5 |
0.0197-0.0591 | 0.500-1.500 | D15 | 1.5 |
0.0315-0.0787 | 0.800-2.000 | D18 | 2.0 |
0.0315-0.0787 | 0.800-2.000 | D18 | 2.0 |
0.0472-0.1181 | 1.200-3.100 | D21 | 3.1 |
0.0472-0.1181 | 1.200-3.100 | D21 | 3.1 |
0.0591-0.1732 | 1.500-4.400 | D24 | 4.4 |
0.0591-0.1732 | 2.000-4.400 | D24 | 4.4 |
0.1299-0.2126 | 3.300-5.400 | D27 | 5.4 |
0.1299-0.2183 | 3.300-5.800 | D27 | 5.8 |
0.2008-0.2992 | 5.100-7.600 | D30 | 7.6 |
0.3150-0.4331 | 8.000-11.000 | D33 | 11.0 |
0.3150-0.4409 | 8.000-11.200 | D30 | 11.2 |
0.3150-0.4724 | 8.000-12.000 | D33 | 12.0 |
0.3150-0.4921 | 8.000-12.500 | D33 | 12.5 |
0.3150-0.5000 | 8.000-12.700 | D36 | 12.7 |
Note: The above hole sizes are recommended for soft wire.In case of hard wire drawing,the maximum hole size should not exceed 65% of them.
3. Application:
Wire Drawing Dies are commonly used to reduce the diameter of various ferrous and non-ferrous rods and wires. Applications include high, medium and low voltage cables, automotive, medical wire, superconducting, bonding, and welding wires.
