0.10mm To 12.7mm PCD Drawing Dies Wire Drawing Die Polycrystalline Diamond

I'm Online Chat Now

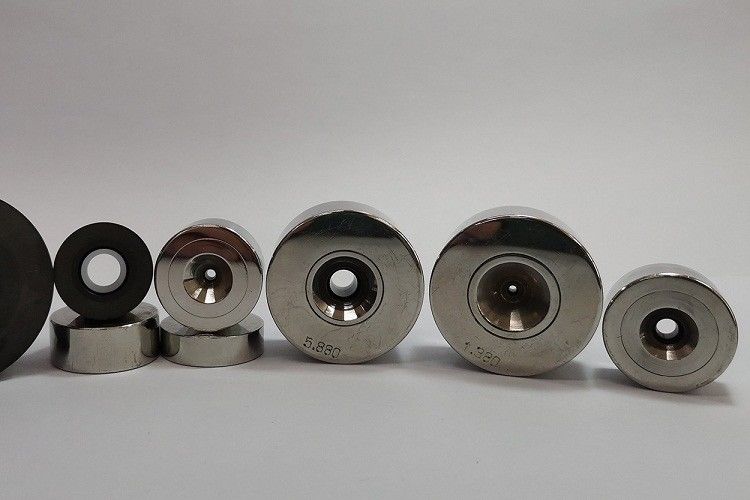

0.10mm To 12.7mm PCD Drawing Dies Wire Drawing Die Polycrystalline Diamond

0.10mm To 12.7mm PCD Drawing Dies Wire Drawing Die Polycrystalline Diamond
0.10mm To 12.7mm PCD Drawing Dies Wire Drawing Die Polycrystalline Diamond

Large Image :  0.10mm To 12.7mm PCD Drawing Dies Wire Drawing Die Polycrystalline Diamond

Product Details:
Place of Origin: China
Model Number: D6 - D36
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton, Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 pieces per day
Detailed Product Description
PCD Drawing Dies: 0.10mm - 12.7mm Wire And Cable Material: PCD Core
Hole Type: Round Size: Customized Size
Surface Treatment: Polishing Mold Life: 1-2 Years
Highlight:

0.10mm PCD Drawing Dies

,

12.7mm PCD Drawing Dies

,

Polishing wire drawing die

0.10mm - 12.7mm Wire and Cable, PCD Darwing Dies, Polycrystalline Diamond Dies, Wire Drawing Dies



1. Description:



PCD Drawing Dies are wire-drawing tools applied in the production of soft wire products such as gold wire, copper and aluminum wires, and hard wire products such as stainless steel, tungsten and copper plated steel wires. By drawing wires through diamond dies with bigger apertures and then smaller ones, as well as taking advantage of the wire's extensibility, a wire with gradually thinned circumference and smoothier surface can be produced.



2. Specifications:



inches mm ADDMA Maximum Diameter
0.0039-0.0157 0.100-0.400 D6 0.4
0.0079-0.0315 0.200-0.800 D12 0.8
0.0079-0.0394 0.200-1.000 D12 1.0
0.0197-0.0591 0.500-1.500 D15 1.5
0.0197-0.0591 0.500-1.500 D15 1.5
0.0315-0.0787 0.800-2.000 D18 2.0
0.0315-0.0787 0.800-2.000 D18 2.0
0.0472-0.1181 1.200-3.100 D21 3.1
0.0472-0.1181 1.200-3.100 D21 3.1
0.0591-0.1732 1.500-4.400 D24 4.4
0.0591-0.1732 2.000-4.400 D24 4.4
0.1299-0.2126 3.300-5.400 D27 5.4
0.1299-0.2183 3.300-5.800 D27 5.8
0.2008-0.2992 5.100-7.600 D30 7.6
0.3150-0.4331 8.000-11.000 D33 11.0
0.3150-0.4409 8.000-11.200 D30 11.2
0.3150-0.4724 8.000-12.000 D33 12.0
0.3150-0.4921 8.000-12.500 D33 12.5
0.3150-0.5000 8.000-12.700 D36 12.7

Note: The above hole sizes are recommended for soft wire.In case of hard wire drawing,the maximum hole size should not exceed 65% of them.



3. Application:



It is suitable for all applications from large drawing to ultra-fine drawing,with predictable wire surface quality.



4. Advantage:

  • Longest die life of any die material, Highest production efficiency with less downtime.
  • Available from large size wire to ultra fine wire.
  • Predictable surface finish of wire.
  • All PCD blanks contain randomly oriented diamond particles. The result is a perfectly round wear pattern for each die, ensuring that your wire remains round.
