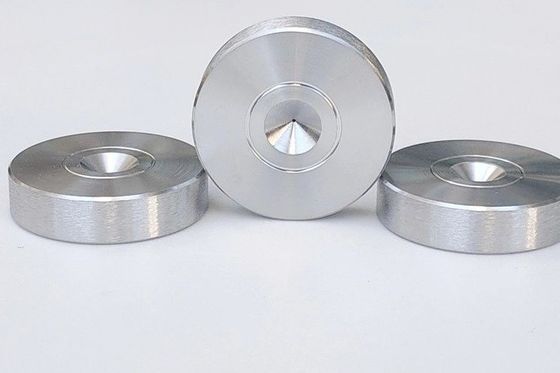

0.08mm To 4.2mm Diamond Drawing Dies Diamond Dies For Wire Drawing 10um

0.08mm To 4.2mm Diamond Drawing Dies Diamond Dies For Wire Drawing 10um
0.08mm To 4.2mm Diamond Drawing Dies Diamond Dies For Wire Drawing 10um

Large Image :  0.08mm To 4.2mm Diamond Drawing Dies Diamond Dies For Wire Drawing 10um

Product Details:
Place of Origin: China
Model Number: Binderless PCD Wire Drawing Dies
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton, Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 pieces per day
Detailed Product Description
Wire Drawing Dies: Binderless PCD Wire Drawing Dies Material: PCD Core
Size: Customized Size Application: Wire Drawing Industry
Mold Life: 1-2 Years Transport: By Air
Highlight:

0.08mm diamond drawing dies

,

4.2mm diamond drawing dies

,

diamond dies for wire drawing 10um

Binderless PCD Wire Drawing Dies, Wire Drawing Dies



1. Description:



There are two kinds of PCD blanks, with and without binder. Generally speaking, PCD blanks with binder are more widely used. While PCD blanks without binder perform better in hard wires, which will bring high temperature in wire drawing process. The metal binder could only bear 650℃. If temperarue is higher, the binder will be carbonized. Then the diamond fall off and the die becomes broken. While the binderless blanks solve this problem and extend the PCD dies' life time.



2. Specifications:



Available Hole Sizes: 0.08mm ~ 4.2mm

Available Grain Sizes: 3μm, 5μm, 10μm



inches mm ADDMA Maximum Diameter
0.0039-0.0157 0.100-0.400 D6 0.4
0.0079-0.0315 0.200-0.800 D12 0.8
0.0079-0.0394 0.200-1.000 D12 1.0
0.0197-0.0591 0.500-1.500 D15 1.5
0.0197-0.0591 0.500-1.500 D15 1.5
0.0315-0.0787 0.800-2.000 D18 2.0
0.0315-0.0787 0.800-2.000 D18 2.0
0.0472-0.1181 1.200-3.100 D21 3.1
0.0472-0.1181 1.200-3.100 D21 3.1
0.0591-0.1732 1.500-4.400 D24 4.4
0.0591-0.1732 2.000-4.400 D24 4.4
0.1299-0.2126 3.300-5.400 D27 5.4
0.1299-0.2183 3.300-5.800 D27 5.8
0.2008-0.2992 5.100-7.600 D30 7.6
0.3150-0.4331 8.000-11.000 D33 11.0
0.3150-0.4409 8.000-11.200 D30 11.2
0.3150-0.4724 8.000-12.000 D33 12.0
0.3150-0.4921 8.000-12.500 D33 12.5
0.3150-0.5000 8.000-12.700 D36 12.7



3. Application:



Stainelss steel wires and cords, molybdenum, chrome, copper, aluminum, nickel, chrome, steel cord, electric wire & cable, gas shield welding wire, flux-cored wire, automobile wire, construction wire, rigging wire, optical fiber and so on.



4. Advantage:

  • Perform well in hard wires
  • Long life time
  • Predictable wire surface, roundness.
