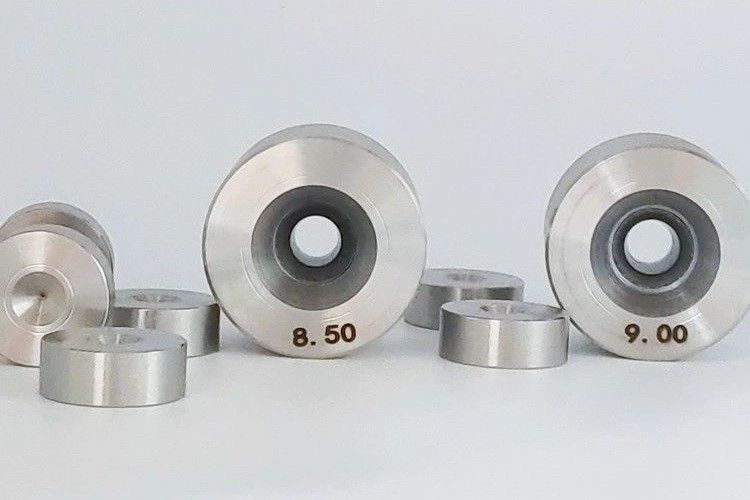

Stainless Steel Tubes Pipes Bars PCD Drawing Die Polycrystalline Diamond Dies

I'm Online Chat Now

Stainless Steel Tubes Pipes Bars PCD Drawing Die Polycrystalline Diamond Dies

Stainless Steel Tubes Pipes Bars PCD Drawing Die Polycrystalline Diamond Dies
Stainless Steel Tubes Pipes Bars PCD Drawing Die Polycrystalline Diamond Dies

Large Image :  Stainless Steel Tubes Pipes Bars PCD Drawing Die Polycrystalline Diamond Dies

Product Details:
Place of Origin: China
Model Number: D6 - D36
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton, Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 pieces per day
Detailed Product Description
PCD Drawing Dies: Tubes, Pipes, Bars Material: PCD Core
Casing: Stainless Steel Mold Life: 1-2 Years
Type: Mold Tool Transport: By Air
Highlight:

Stainless Steel PCD Drawing Die

,

PCD Drawing Die 0.2mm

,

Polycrystalline Diamond Dies 0.8mm

Tubes Pipes Bars, PCD Drawing Dies, Polycrystalline Diamond Dies



1. Description:



PCD Wire Drawing Die is a normal wire tool made by PCD core. When pass through a group of PCD dies, the wire gradually deforms then becomes thiner and thiner, finally comes to target size.



2. Specifications:



inches mm ADDMA Maximum Diameter
0.0039-0.0157 0.100-0.400 D6 0.4
0.0079-0.0315 0.200-0.800 D12 0.8
0.0079-0.0394 0.200-1.000 D12 1.0
0.0197-0.0591 0.500-1.500 D15 1.5
0.0197-0.0591 0.500-1.500 D15 1.5
0.0315-0.0787 0.800-2.000 D18 2.0
0.0315-0.0787 0.800-2.000 D18 2.0
0.0472-0.1181 1.200-3.100 D21 3.1
0.0472-0.1181 1.200-3.100 D21 3.1
0.0591-0.1732 1.500-4.400 D24 4.4
0.0591-0.1732 2.000-4.400 D24 4.4
0.1299-0.2126 3.300-5.400 D27 5.4
0.1299-0.2183 3.300-5.800 D27 5.8
0.2008-0.2992 5.100-7.600 D30 7.6
0.3150-0.4331 8.000-11.000 D33 11.0
0.3150-0.4409 8.000-11.200 D30 11.2
0.3150-0.4724 8.000-12.000 D33 12.0
0.3150-0.4921 8.000-12.500 D33 12.5
0.3150-0.5000 8.000-12.700 D36 12.7

Note: The above hole sizes are recommended for soft wire.In case of hard wire drawing,the maximum hole size should not exceed 65% of them.



3. Application:



Widely used for drawing different kinds of tubes, pipes, bars and etc.



4. Advantage:

  • Specializing in the research, development, production, sale and service of diamond tools.
  • By repairing and polishing the die to the mirror and reshaping the compression zone, the service life of the drawing die is extended.
