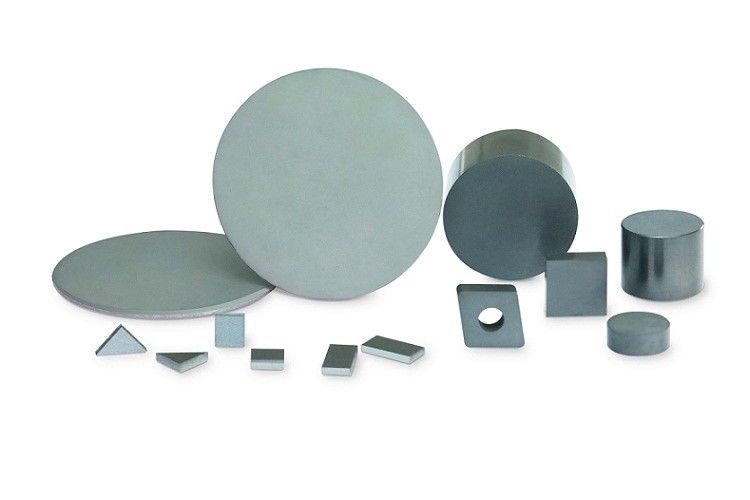

5um 10um PCD Cutting Tool Blanks Pcbn Blanks For Aerospace Industry

5um 10um PCD Cutting Tool Blanks Pcbn Blanks For Aerospace Industry
5um 10um PCD Cutting Tool Blanks Pcbn Blanks For Aerospace Industry 5um 10um PCD Cutting Tool Blanks Pcbn Blanks For Aerospace Industry

Large Image :  5um 10um PCD Cutting Tool Blanks Pcbn Blanks For Aerospace Industry

Product Details:
Place of Origin: China
Model Number: Round Disc
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Packaging Details: Plastic box, Carton
Delivery Time: 5-8 workdays
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1500 pieces per month
Detailed Product Description
PCD Cutting Tool Blanks: Aerospace Industry PCD Shape: Round
Size: 58mm Grain Size: 5μm, 10μm, 25μm
Application: Cutting Transport: By Air
Highlight:

round 58mm PCD Cutting Tool Blanks

,

5um 10um PCD Cutting Tool Blanks

,

pcbn blanks for Aerospace Industry

Aerospace Industry PCD, PCD Blanks, PCD Discs, PCD Cutting Tool Blanks



1. Description:



At present, the widely used composite materials in the aerospace field mainly include carbon fiber reinforced materials (CFRP, Carbon Fiber Reinforced Polymer), glass fiber reinforced materials (GFRP), aluminum-based silicon carbide (SiCp/Al) and other composite materials. Titanium alloy has the characteristics of low density, high strength, good corrosion resistance, excellent heat resistance and low temperature resistance, and non-magnetic. It is also widely used in aerospace.



Composite materials have the characteristics of light weight, high strength, high temperature resistance, corrosion resistance, etc., and are ideal materials in the aerospace field. With the widespread application of aerospace composite materials, the correct selection and rational use of tools for high-efficiency and high-quality cutting has become the key.



The commonly used tool materials in the aerospace manufacturing industry mainly include cemented carbide, superhard tool materials and ceramics. Among them, cemented carbide and superhard tool materials account for the largest proportion, and have become the leading tools in the development of aerospace industry tools. It has a wide range of applications.



2. Specification:



We provide PCD blanks for aerospace industry in disc and cut-segment shapes for the precision tooling. There are 2μm, 5μm, 10μm, 25μm, and mixed grain sizes available.



Grain Size Type Property Application

Fine

5 μm

Round disc

Cutting tips

Good surface finishing Used for copper, bronze, aluminum, plastic, wood composites;

Medium

10 μm

Round disc

Cutting tips

General purpose, a good balance of toughness and wear resistance Used for low-medium silicon aluminum alloys, copper alloys, wood composites, etc.

Coarse

25 μm

Round disc

Cutting tips

Good wear resistance Used for high silicon aluminum alloys, metal matrix composites, laminate flooring, carbide alloy, ceramics, etc.























3. Application:



The tool with PCD blanks for aerospace industry has a sharp cutting edge that is finely ground, which effectively solves the defects of material delamination, tearing, burrs and other defects in the process of composite material processing. While obtaining precise and smooth cutting results, it makes the processing more efficient and wear-resistant. Better performance and longer tool life. In the processing of aerospace composite materials, hole processing, rims, and collar grooves are processing difficulties.



4. Advantage:

  • Extremely high hardness and wear resistance: the hardness can reach 8000HV, which is 80-120 times that of cemented carbide.
  • Excellent thermal conductivity: the thermal conductivity is 700W/mk, which is 1.5-9 times that of cemented carbide.
  • Low friction coefficient: The friction coefficient is generally 0.1-0. 3 (hard alloy is 0.4-1), so the PCD blanks for aerospace industry can significantly reduce the cutting force.
  • Low coefficient of thermal expansion: The coefficient of thermal expansion is only 0.9-10-6-1. 18x10-6, which is only 1/5 of that of cemented carbide. Therefore, the thermal deformation of tool with PCD blanks for aerospace industry is small and the machining accuracy is high.
  • Smaller material affinity: The affinity between tool with PCD blanks for aerospace industry and non-ferrous metals and non-metallic materials is very small. During the machining process, the chips are not easy to stick to the tool, and it is not easy to stick to the tool tip to form a built-up edge.

5um 10um PCD Cutting Tool Blanks Pcbn Blanks For Aerospace Industry 0
